Collection: Bench Mounted Overshelf

Bench-mounted overshelves attach above stainless steel workbenches and provide elevated storage for ingredients, tools, plates, GN pans and small equipment. They free bench surface for prep work while keeping high-use items within reach. Hospitality Connect supplies overshelves from Modular, Mixrite, Vogue and other commercial brands - in 600-2400mm widths and single, double and triple-tier configurations.

Types and configurations

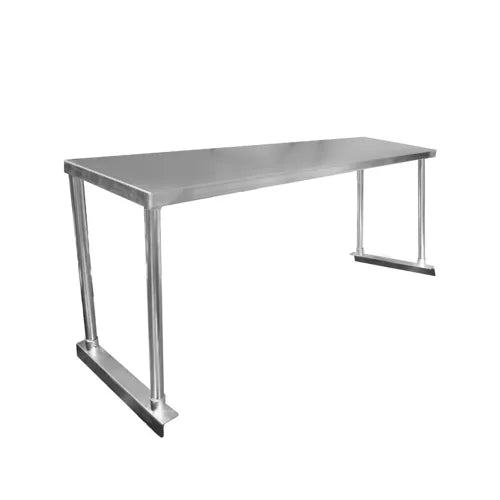

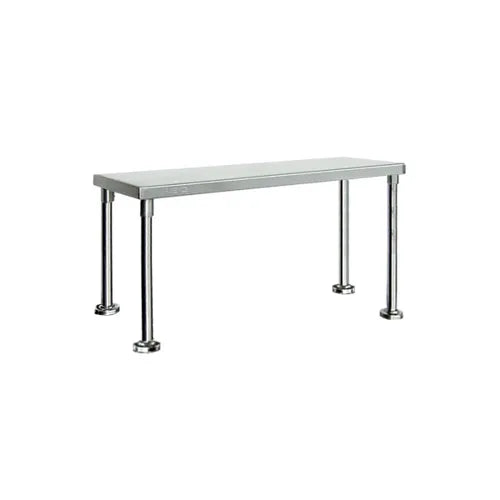

• Single-tier overshelves: 250-300mm deep shelf mounted 400-500mm above the bench. The standard prep-station storage.

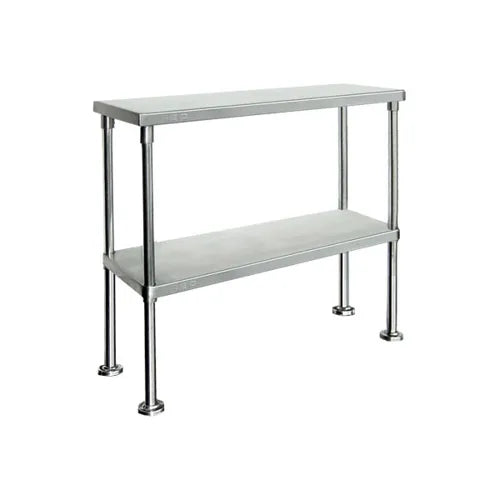

• Double-tier overshelves: Two shelves stacked at 250mm intervals; for plate and bowl storage in plating stations.
• Triple-tier overshelves: Three shelves; for high-volume plating, GN pan storage and ingredient containers.
• Wall-mounted overshelves: Bracket-mounted to the wall rather than the bench; for areas where bench is fixed or removable.
• Heated overshelves (pass-line): Powered shelf with heat strip for plate-warming above the cooking line.

Sizing and gauge

Match overshelf width to the bench below: a 1500mm overshelf on a 1500mm bench. Shelf depth is typically 250-300mm; deeper shelves block bench-light and access. Mounting height: 400mm above the bench top is the sweet spot for arm-comfort access; 500mm clears taller bench equipment but stretches reach. Top gauge for overshelves runs 0.8-1.0mm 304 stainless; thicker gauges (1.2mm+) for shelves carrying heavy GN pan loads. Confirm bracket capacity - most economy overshelves rate 30-50kg total UDL; reinforced models go to 100kg+.

Plumbing and installation

• Mount on solid bench: Confirm the bench has the structural integrity to carry the overshelf load - cheaper benches flex.
• Wall-fix for stability: In high-traffic zones, fix the rear of the overshelf to a wall noggin to stop vibration creep.
• Power for heated shelves: Heated overshelves need a 10A 240V outlet within reach; plan electrical access before delivery.
• Don't overload: Heavy stockpots and cast-iron pans belong on the bench, not the overshelf - load limits matter.
• Match the leg style: Pass-line overshelves with leg supports vs cantilevered designs - pick to suit bench access.

Common kitchen design mistake: ordering an overshelf without confirming under-shelf clearance for benchtop equipment. A 400mm-clearance overshelf doesn't fit over a 350mm-tall toaster oven; always confirm tallest benchtop equipment first. For pass-line plating, double-tier overshelves at 350mm and 500mm above bench give plate-up flow without cluttering the bench. Heated pass overshelves (heated landing strips) keep plates warm during plating - especially valuable for fine dining where plate temperature drops between plating and pickup.

Pair with

Combine with stainless steel work bench, commercial shelving and infill benches for complete kitchen builds.

Why buy bench-mounted overshelves from Hospitality Connect

• Curated for Australian commercial kitchens: Every line is selected against the realities of AU service — voltage, room dimensions, council rules, ambient temperatures.
• Brand-direct relationships: We deal directly with manufacturers and importers, so you get current models and the right parts when you need them.
• Field-tested specs: Sizes, gauges and capacities listed on each product reflect what actually works in service, not glossy brochure numbers.
• Tech support that picks up: Pre and post-sale phone lines staffed by people who know commercial kitchens.
• Warranty handled here: We process the claim with the manufacturer; you keep cooking.

Bench-mounted overshelves care and longevity

• Avoid chlorinated cleaners: Bleach and chlorine sanitisers pit 304-grade stainless. Use neutral pH detergents and a non-abrasive pad.
• Wipe with the grain: Always finish with the polish line — circular scrubbing creates visible marks under service lighting.
• Inspect weld lines monthly: Check seams and corner welds for hairline cracks that trap moisture.
• Mind undershelf load limits: Most economy benches rate 80–120kg total UDL; reinforced models go higher. Don't park combi ovens on lightweight benches.
• Foot levellers: Re-level annually after slab settlement; uneven feet flex the worktop and stress welds.
