Washtech PW2 Wide Body Front Loading Warewasher, 500mm Rack
Wide body front loading warewasher: W 1100 × D 650 × H 750 mm chamber for bins, crates and trays, up to 20 trays a cycle, 4 L a cycle.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

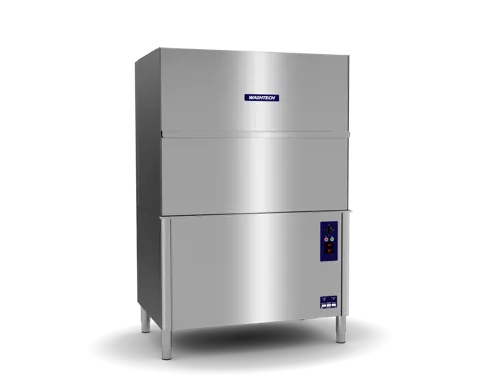

The Washtech PW2 is a wide body front loading warewasher made in New Zealand by Washtech and distributed by Moffat. Its large chamber, with a usable area of W 1100 × D 650 × H 750 mm, takes bins, crates, bowls and other oversized items, and an internal upper rail with adjustable tines washes up to 20 baking or GN trays a cycle. It runs 2, 4 and 6 minute cycles on 4 litres of hot water.
Key features and benefits
The PW2 is built for operations washing oversized and heavily soiled items all day, from bakeries and production kitchens to supermarkets and hospitals. A counterbalanced, insulated split door opens the full chamber for easy loading, and the high powered dual-pump wash system with stainless-steel arms and precision jets cleans bins and crates in one pass. A break tank and rinse pump let it run on low inlet water temperature or pressure, and double stainless-steel filtration with dual scrap trays protects the pumps.
Standard features
- Wide body chamber. Usable area W 1100 × D 650 × H 750 mm.
- 2, 4 and 6 minute cycles. On 4 litres of hot water a cycle.
- Upper rail with adjustable tines. Hangs ladles and whisks, or washes up to 20 baking or GN trays up to 40 mm deep.
- High powered dual-pump wash system. For heavily soiled items.
- Break tank and rinse pump fitted. Suits low inlet water temperature and/or pressure.
- Washtech hybrid controls. IP67 stainless switches with a customisable electronic timer.
- Stainless-steel wash and rinse arms. Precision stainless-steel jets.
- Double stainless-steel filtration. Dual scrap trays and a separate wash inlet filter.
- Watermark-approved backflow prevention. Atmospheric vacuum breaker.
- Easy installation. Water supply hose and detergent and rinse aid pumps with injector lines supplied.
- Counter-sprung split door. Insulated, for easy access to the chamber.
Best suited to
- Bakeries. Baking trays, bins and mixing bowls.
- Supermarkets. Crates, tubs and display trays.
- Hospitals and institutions. Large utensils, trays and containers.
- Production kitchens. Heavily soiled pots and containers.
The PW2 has a heat recovery version, the PW2C, which suits installation without an extraction canopy in many situations. For a passthrough layout with the same capacity, see the PW3, and for a smaller front loader the PW1. Before ordering, check the water supply temperature and pressure, the drain position and the power supply against the specification so the machine performs as rated from day one. Our team can help you size the machine to your covers and peak service, so you are not paying for capacity you will never use. If you are replacing an older warewasher, measure the existing water, drain and power positions so the installer knows what will need to move. Browse the Washtech range or call 1300 089 974.
Cleaning and maintenance
At the end of each shift, drain the tank, then lift out the dual scrap trays and the wash inlet filter and rinse them. Check the stainless-steel wash and rinse arms for blocked jets, wipe the door seals, and leave the door open overnight so the chamber can air. Keep the detergent and rinse aid containers topped up.
Installation, power and service
The PW2 is 1235 mm wide, 860 mm deep and 1790 mm high (2165–2225 mm door open), and weighs 220 kg. It takes potable 65 °C hot water, or cold water with lower productivity, at 100–350 kPa and 10 L a minute through a ¾ in male connection, hose supplied; consumption is 4 L a cycle. Waste is a 1.5 in BSP male connection to a 50 mm minimum line. Power is three phase 400 V at 30 A (19.5 kW) or 20 A (12 kW). The isolating switch must be within 1 m of the machine, not behind it. Washtech is backed by Moffat's warranty and national service network; call 1300 089 974 to confirm the current terms.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What can the PW2 wash?
Bins, crates, bowls, trays and other oversized items in a usable chamber of W 1100 × D 650 × H 750 mm.
How many trays a cycle?
The internal upper rail with adjustable tines takes up to 20 baking or GN trays up to 40 mm deep.
Can it run on cold water?
Yes, it is suitable for cold inlet water, but hot inlet water gives optimal productivity. A break tank and rinse pump are fitted.
How much water does it use?
4 litres a cycle, on 2, 4 or 6 minute cycles.
What power does the PW2 need?
Three phase 400 V at 30 A (19.5 kW) or 20 A (12 kW).
What drain does it need?
A 1.5 in BSP male connection to a drain line of at least 2.0 in (50 mm).
Does the PW2 need treated water?
Water quality affects results and machine life. The sheet sets limits of pH 7–8 and TDS up to 135, with maximums for chloride, sulphate, iron and chlorine; we can advise on a filter or softener if your supply is outside them.
