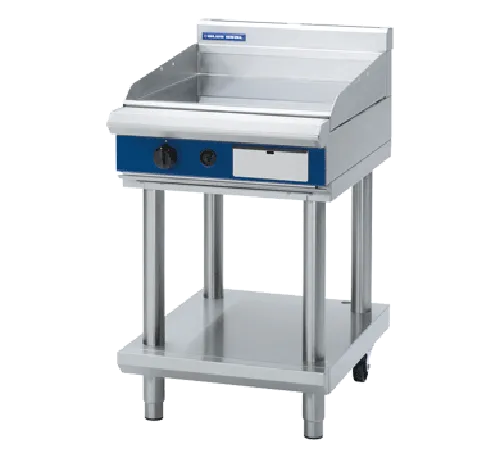

Blue Seal GP514-LS 600mm Gas Griddle Leg Stand
600 mm gas griddle, leg stand. 53 MJ/h, 90–300 °C, 20 mm plate, 592 × 530 mm cooking surface. 600 × 812 × 1085 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal GP514-LS is a 600 mm gas griddle on a leg stand, from the Evolution Series made by Moffat. A 53 MJ/h (14.9 kW) 4-bar burner heats a 20 mm machined plate with a 592 × 530 mm cooking surface at 90–300 °C. The framed stand has a stainless-steel shelf, rear rollers and front adjustable feet, and the unit is 1085 mm high including the splashback.
Key features and benefits
The GP514-LS is a free-standing 600 mm griddle that needs no bench and keeps an open shelf under the plate for trays and pans. Its 53 MJ/h burner and 20 mm plate recover fast when a load goes down, and the 90–300 °C thermostat keeps the whole surface at a steady temperature. A flame failure pilot with piezo ignition and an over-temperature cut-out are standard. Rear rollers help when it is time to clean behind the line, and the stand takes a rear or through-shelf gas connection.
Standard features
- Gas griddle. 600 mm thermostatic gas griddle with a 592 × 530 mm, 3138 cm² cooking surface.
- Burner system. One 53 MJ/h 4-bar chromed steel burner with pilot, flame failure and piezo ignition, 53 MJ/h (14.9 kW).
- Thermostatic control. One 90–300 °C thermostat.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Ribbed plate or mirror chromed plate available as options.
- Over-temperature cut-out. Safety cut-out guards against overheating.
- Grease drawer. A 2.5 mm grease channel and a stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 side panels and splashback, and a vitreous enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Leg stand. Fully modular framed stand with a 0.9 mm 304 stainless-steel shelf, for a matched suite finish.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs, with two adjustable feet at the front and two rollers at the rear.
- Quick assembly. Quick-assembly design with a framed top for connection to the appliance.
- Gas connection. Suits a rear or through-shelf gas connection.
Best suited to
- Cafes and bistros. A full-height griddle station with open storage below.
- Breakfast service. Eggs, bacon and pancakes on a steady 90–300 °C plate.
- Burger and grill kitchens. 53 MJ/h behind a 592 × 530 mm plate.
- Evolution suites. Matches Blue Seal cooktops, fryers and chargrills at the same 812 mm depth.
The leg stand is the simplest free-standing option. If you prefer enclosed storage, the GP514-CB puts the same griddle on a double-skin cabinet, and the GP514-B is the bench-mount version. For two independent heat zones, step up to the 900 mm GP516-LS, or for a three-zone 1200 mm plate, the GP518-LS. The stand accepts a rear or through-shelf gas connection, which helps when lining up a suite against a wall. If you are planning a full line, add up the gas ratings of every appliance so your gas fitter can confirm the meter and supply pipe are large enough, and measure doorways for delivery. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel, and the plate is finished front and rear with an overlap so grease has nowhere to hide. Scrape fat into the channel and empty the stainless-steel grease drawer after each service. Controls are serviced and gas conversions are done through the front of the unit; burner service needs the plate removed.
Installation, power and service
Allow a 600 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. Gas is an R ¾ inch BSP male connection rated at 53 MJ/h (14.9 kW), and it comes with a regulator for natural or LP gas plus conversion kits, so tell us your gas type when you order. A licensed gas fitter must install and commission it. The stand accepts a rear or through-shelf gas connection. Net weight is 108 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How hot does the GP514-LS get?
One thermostat sets the 20 mm plate from 90 to 300 °C.
What gas connection does the GP514-LS need?
An R ¾ inch BSP male connection at 53 MJ/h (14.9 kW); the stand allows a rear or through-shelf connection. A licensed gas fitter must install it.
How big is the cooking surface?
592 × 530 mm, or 3138 cm².
What gas types can it run on?
Natural gas or LP gas. It comes with a natural and LP regulator and gas type conversion kits; tell us which gas you have when you order.
Can I get a ribbed or chrome plate?
Yes. Ribbed and mirror chromed plates are options.
What are the GP514-LS dimensions?
600 × 812 × 1085 mm including the splashback. Net weight is 108 kg.
