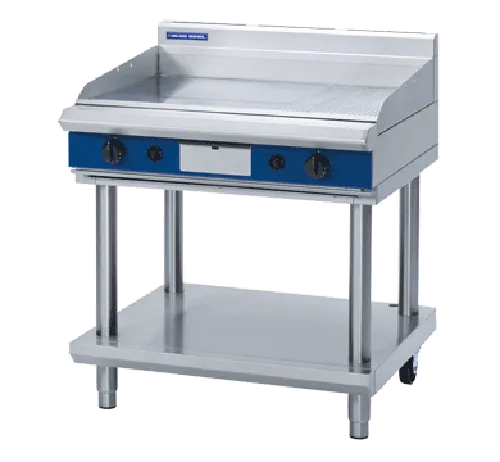

Blue Seal GP516-LS 900mm Gas Griddle Leg Stand
900 mm gas griddle, leg stand. 80 MJ/h, two 90–300 °C zones, 20 mm plate, 892 × 530 mm cooking surface. 900 × 812 × 1085 mm incl. splashback.
Hurry up, only 1 item left in stock.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal GP516-LS is a 900 mm gas griddle on a leg stand, from the Evolution Series made by Moffat. Its 20 mm machined plate gives an 892 × 530 mm cooking surface with two separate 90–300 °C heat zones, powered by an 80 MJ/h (22.2 kW) burner system. The framed stand has a stainless-steel shelf, rear rollers and front adjustable feet, and the unit is 1085 mm high including the splashback.
Key features and benefits
The GP516-LS is a free-standing griddle that needs no bench. Two 40 MJ/h burners with separate thermostats let you hold one half hot for searing and the other lower for eggs, onions or holding. The 20 mm plate stores heat, so it recovers quickly when a full load goes down. The framed stand adds an open stainless-steel shelf for trays and pans, and its rear rollers make it easier to pull out for cleaning. Pilot flame failure, piezo ignition and over-temperature cut-outs come standard.
Standard features
- Gas griddle. 900 mm thermostatic gas griddle with an 892 × 530 mm (4728 cm²) cooking surface.
- 80 MJ/h burner system. Two 40 MJ/h 3-bar chromed steel burners, 80 MJ/h (22.2 kW) in total.
- Two heat zones. Separate left and right zones, each with its own 90–300 °C thermostat.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Optional ribbed plate sections or mirror-finish hard chrome plates.
- Pilot and ignition. Flame failure pilot burners with piezo ignition to each pilot.
- Over-temperature cut-outs. Safety cut-outs guard against overheating.
- Grease management. 2.0 mm grease channel and a stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 side panels and splashback, and a vitreous enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Leg stand. Fully modular framed stand with a 0.9 mm 304 stainless-steel shelf, for a matched suite finish.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs, with two adjustable feet at the front and two rollers at the rear.
- Quick assembly. Quick-assembly design with a framed top for connection to the appliance.
- Gas connection. Suits a rear or through-shelf gas connection.
Best suited to
- Restaurants and bistros. A full-height griddle station with storage under the plate.
- Breakfast cafes. Two independent zones handle eggs and proteins at their own temperatures.
- Burger and grill kitchens. 80 MJ/h behind an 892 × 530 mm plate keeps up with busy service.
- Suite line-ups. Matches Blue Seal Evolution cooktops, fryers and ranges at the same depth.
The leg stand suits kitchens that want open shelving under the griddle at the lowest cost. If you want enclosed storage, the GP516-CB is the same griddle on a double-skin cabinet, and the GP516-RB adds two GN 1/1 refrigerated drawers for chilled proteins right below the plate. To mount it on your own bench, choose the GP516-B. For a smaller footprint, see the 600 mm GP514-LS, or for more plate, the 1200 mm GP518-LS. The stand accepts a rear or through-shelf gas connection, which helps when lining up a suite against a wall. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel, and the plate has an overlapping finish at the front and rear so there are no cleaning traps where grease can build up. Scrape fat into the 2.0 mm grease channel and empty the stainless-steel grease drawer after each service. Controls are serviced and gas conversions are done through the front of the unit; burner service needs the plate removed.
Installation, power and service
Allow a 900 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. Gas is an R ¾ inch BSP male connection at 80 MJ/h, and it ships with a regulator for natural or LP gas plus conversion kits, so tell us your gas type when you order. A licensed gas fitter must install and commission it. The stand accepts a rear or through-shelf gas connection. Net weight is 157 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How hot does the GP516-LS get?
Each of its two heat zones has its own thermostat from 90 to 300 °C.
What gas connection does the GP516-LS need?
An R ¾ inch BSP male connection at 80 MJ/h (22.2 kW); the stand allows a rear or through-shelf connection. A licensed gas fitter must install it.
Can the GP516-LS be moved for cleaning?
Yes. It has two rollers at the rear and two adjustable feet at the front, so you can ease it out once the gas is safely disconnected by a qualified person.
What gas types can it run on?
Natural gas or LP gas. It comes with a natural and LP regulator and gas type conversion kits; tell us which gas you have when you order.
Can I get a ribbed or chrome griddle plate?
Yes. Ribbed plate sections and mirror-finish hard chrome plates are options. The standard plate is 20 mm machined steel.
How big is the cooking surface?
892 × 530 mm, or 4728 cm², on a 20 mm machined plate.
