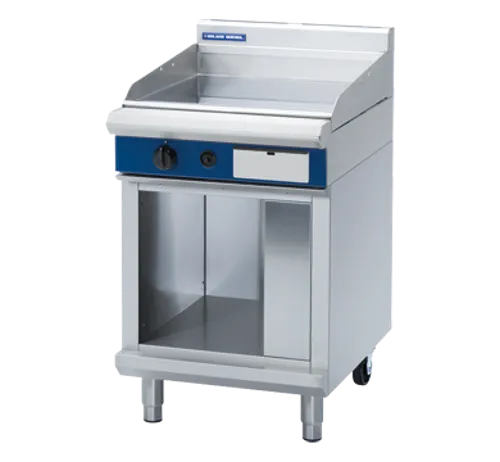

Blue Seal GP514-CB 600mm Gas Griddle Cabinet Base
600 mm gas griddle, cabinet base. 53 MJ/h, 90–300 °C, 20 mm plate, 592 × 530 mm cooking surface. 600 × 812 × 1085 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal GP514-CB is a 600 mm gas griddle on a cabinet base, from the Evolution Series made by Moffat. A 53 MJ/h (14.9 kW) 4-bar burner heats a 20 mm machined plate with a 592 × 530 mm cooking surface at 90–300 °C. Below it, a double-skin stainless cabinet can take an optional GN 1/1 four-position racking kit. It is 1085 mm high including the splashback.
Key features and benefits
The GP514-CB is a free-standing 600 mm griddle with closed storage that keeps pans and utensils out of the splash zone. Its 53 MJ/h burner and 20 mm plate recover quickly as product goes down, and the single thermostat holds 90–300 °C evenly. The optional racking kit turns the cabinet into GN 1/1 storage for prepared ingredients. A flame failure pilot with piezo ignition and an over-temperature cut-out are standard. Rear rollers and front adjustable feet make levelling and cleaning easier, and the grease drawer empties from the front.
Standard features
- Gas griddle. 600 mm thermostatic gas griddle with a 592 × 530 mm, 3138 cm² cooking surface.
- Burner system. One 53 MJ/h 4-bar chromed steel burner with pilot, flame failure and piezo ignition, 53 MJ/h (14.9 kW).
- Thermostatic control. One 90–300 °C thermostat.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Ribbed plate or mirror chromed plate available as options.
- Over-temperature cut-out. Safety cut-out guards against overheating.
- Grease drawer. A 2.5 mm grease channel and a stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 side panels and splashback, and a vitreous enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Cabinet base. Fully modular double-skin cabinet in 0.9 mm 304 stainless steel, inside and out, for a matched suite finish.
- Racking option. Optional GN 1/1 four-position racking kit.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs, with two adjustable feet at the front and two rollers at the rear.
Best suited to
- Hotels and clubs. A tidy, closed-front griddle with storage below.
- Cafes and brunch venues. A 592 × 530 mm plate for eggs, bacon and pancakes.
- Grill kitchens. 53 MJ/h for steady searing through service.
- Matched suites. A double-skin cabinet finish that lines up with other Evolution units.
Choose the cabinet base for a stand-alone griddle with enclosed storage. The GP514-LS is the same griddle on an open leg stand, and the GP514-B is the bench-mount version. For two separate heat zones and a 900 mm plate, see the GP516-CB; for the smallest footprint, the 450 mm GP513-CB. All share the 812 mm Evolution Series depth, so they line up with Blue Seal ranges and fryers. If you are planning a full line, add up the gas ratings of every appliance so your gas fitter can confirm the meter and supply pipe are large enough, and measure doorways for delivery. Browse the Blue Seal Evolution range or call us on 1300 089 974 for help.
Cleaning and maintenance
The exterior is easy-clean stainless steel, and the plate is finished front and rear with an overlap so grease has nowhere to hide. Scrape fat into the channel and empty the stainless-steel grease drawer after each service. Controls are serviced and gas conversions are done through the front of the unit; burner service needs the plate removed.
Installation, power and service
Allow a 600 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. Gas is an R ¾ inch BSP male connection rated at 53 MJ/h (14.9 kW), and it comes with a regulator for natural or LP gas plus conversion kits, so tell us your gas type when you order. A licensed gas fitter must install and commission it. Net weight is 133 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What can I store in the GP514-CB cabinet?
The double-skin cabinet takes an optional GN 1/1 four-position racking kit.
How hot does the GP514-CB get?
The plate runs from 90 to 300 °C on a single thermostat.
What gas supply does the GP514-CB need?
53 MJ/h (14.9 kW) through an R ¾ inch BSP male connection, installed by a licensed gas fitter.
What gas types can it run on?
Natural gas or LP gas. It comes with a natural and LP regulator and gas type conversion kits; tell us which gas you have when you order.
How big is the cooking surface?
592 × 530 mm, or 3138 cm², on a 20 mm plate.
How heavy is it?
Net weight is 133 kg; it measures 600 × 812 × 1085 mm including the splashback.
