To buy a complete fixed commercial kitchen handwashing station, confirm the applicable layout and tap requirements first. Then match the basin, tap/control, warm-water supply, soap, drying, bin and service access as one package. A basin that fits the wall is not enough: the station must work for the people using and maintaining it.
Confirm the site requirements first
FSANZ’s health and hygiene advice calls for convenient basins dedicated to handwashing, with warm running water, soap and single-use towels or similar drying facilities. Temporary stalls may have a warm-water exception: ask council rather than applying that exception to a fixed kitchen. This guide concerns fixed kitchens, not mobile-stall approval.
For NSW retail fit-outs, the NSW Food Authority’s premises-construction guidance lists hands-free facilities and proximity to food handling among its AS 4674:2004 considerations. It describes that standard as a compliance method usually required by council consent. Confirm your fit-out pathway, applicable hands-free controls and placement requirements with council before choosing. Elsewhere in Australia, check the relevant authority and designer rather than applying NSW criteria nationwide.
Build one compatible purchasing list
List the basin, tap/control, warm-water components, soap dispenser and refill, towel dispenser and towels, bin, mounting hardware and plumbing/site work. Ask which items are included and which require separate ordering.
Compare the overall basin envelope, usable bowl and splashback separately. Match the tap mounting hole or wall arrangement, spout reach and outlet position to the actual bowl. Allow room for both hands without striking the spout or wall. A compact shell can fit while the usable station fails.
Have the designer assess splash towards adjacent food areas and the wall condition, supports and mounting loads. Have a licensed plumber confirm drainage, waste/trap connections and warm-water delivery and temperature control for the exact models. A basin name or an included temperature valve does not establish an approved installed system.
Knee-operated or sensor: compare the same criteria
Neither control is automatically the best choice. Hands-free operation alone does not establish site suitability or lower water use.
- Reach and activation
- For knee operation, check the activation point against users’ reach and standing position. For sensors, check the detection area against normal hand positions inside the bowl. Neither should require an awkward approach.
- Practical washing cycle
- For either option, establish how long water runs and how it restarts. Check that the knee-control sequence or sensor run-time/reactivation allows practical washing and rinsing, rather than choosing from the control label alone.
- Water and power
- Confirm the warm-water supply and control arrangement for both. For a sensor model, establish its actual mains or battery requirements and access for servicing; do not assume the power arrangement.
- Cleaning, faults and spares
- Ask each supplier for model-specific cleaning directions, failure response and replacement-part availability. Check access to the valve or sensor, and to batteries where fitted, after installation.

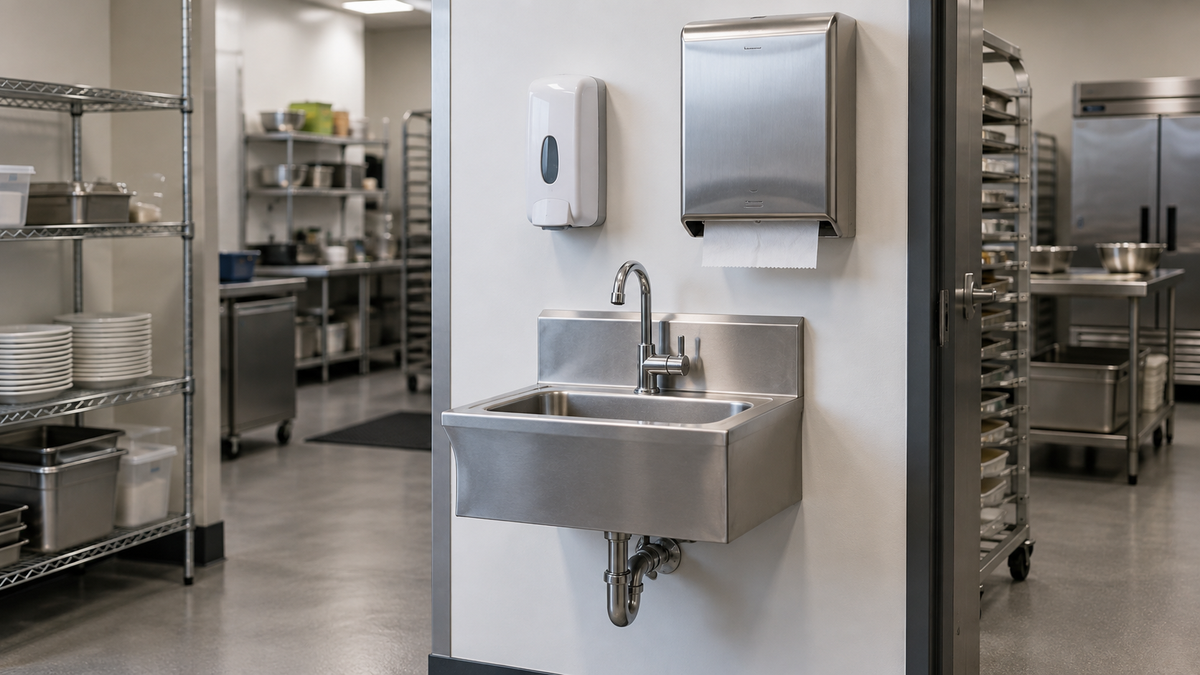

Only consider a manual lever if the relevant authority confirms that arrangement is acceptable for your venue. The accompanying illustration is not an approved layout or evidence that its hand-operated-looking tap is acceptable.
Match soap, towels and the bin
Specify liquid or foam, cartridge or refillable, and obtain labelled dispenser/refill compatibility. Arrange a trial with the correct refill. Check that replenishment will not contaminate or obstruct the basin.
Match the paper dispenser to the exact interfold or roll dimensions and dispensing method. Keep towel supplies dry and allow refill-door and key clearance. Place an accessible used-towel bin outside the walking route. Any alternative drying arrangement needs site acceptance, not substitution based on a general webpage.
NSW Food Authority handwashing advice makes clear that antibacterial gels alone do not replace handwashing. Sanitiser is not a substitute for the station.
Seven checks before confirming the order
These are proposed checks, not reported product tests. Record pass, fail or unknown. Missing evidence is unknown, not a pass; resolve it before confirming the affected items.
- Site route and placement. Pass: documented council requirements and the agreed drawing align, with an unobstructed approach. Otherwise, obtain confirmation or revise the location.
- Bowl and spout fit. Pass: a dimensioned mock-up or demonstration shows room for both hands beneath the proposed spout inside the bowl. Otherwise, rematch the basin and tap.
- Activation and cycle. Pass: a demonstration shows representative users can activate the control and complete washing and rinsing practically. Otherwise, request evidence or select another control.
- Water and connections. Pass: the plumber documents compatible warm-water delivery, temperature control, drainage and connections for the named models. Otherwise, hold those items for clarification.
- Soap and refills. Pass: labelled refill codes match the dispenser and a correct sample dispenses properly. Otherwise, obtain a compatible refill/dispenser combination.
- Drying and bin. Pass: the specified towels dispense properly, supplies stay dry and the bin is reachable without blocking passage. Otherwise, change the products or layout.
- Refill and maintenance access. Pass: a layout check or demonstration confirms refill doors, keys, cleaning and service access remain usable after mounting. Otherwise, revise clearances or mounting.
Copy this supplier enquiry
Please quote a complete fixed handwashing station for [venue, state and council]. Attached is [approved drawing, or proposed drawing with approval questions marked]. Please provide:
- Basin and tap model codes, dimensioned drawings and itemised inclusions/exclusions, including any temperature-control components.
- Control operation and cycle details, water connections, warm-water arrangement, and any power or battery requirements.
- Soap dispenser and compatible refill codes, paper dispenser and compatible towel codes/formats, plus bin and accessories.
- Mounting/support requirements, waste/trap connections, access clearances and the division of supplier, installer and venue site work.
- An itemised quote stating its GST basis, delivery costs/access requirements, installation, handover/training, warranty, spares and current availability and lead time for each item.
Turn the shortlist into a station quote
Start with Hospitality Connect’s hand basin and knee-operated sink range, sensor and hands-free tapware and soap dispenser range. These are broad catalogues: mop sinks, loose bowls, bottle fillers and towel products may appear. A bottle filler is not automatically a handwashing tap, and catalogue membership establishes neither suitability nor stock.
Send your drawing, component shortlist and outstanding checks through Hospitality Connect’s enquiry page to request a coordinated quote, with consumables and site work identified rather than left assumed.
