Waldorf 800 Series GP8600E-B 600mm Electric Griddle Bench Model
600 mm electric griddle, bench model. 592 × 530 mm (3138 cm²) plate, 7.2 kW.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

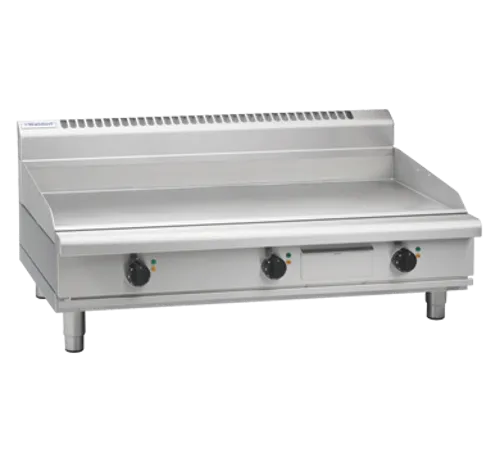

The Waldorf GP8600E-B is a 600 mm electric griddle from the Waldorf 800 Series, made by Moffat, supplied as the bench model. It has a 20 mm machined steel plate with a 592 × 530 mm (3138 cm²) cooking surface, heated by three 2.4 kW stainless-steel sheathed elements with a single thermostatic zone across the whole plate. It is 805 mm deep to line up with the rest of the Waldorf suite. Ribbed and chrome plate options are available.
Key features and benefits
A 20 mm machined plate holds its heat when cold product goes on, so a griddle this size keeps searing through a busy service instead of stalling. A 50–300 °C thermostat holds the whole plate at the temperature you set. Indicator lights show power and heating at a glance. The plate is top-weld sealed, with 2.5 mm stainless splash guards on the sides and rear and a 2.0 mm grease channel feeding a stainless grease drawer, and the plate overlaps front and rear so there are no cleaning traps.
Standard features
- Griddle plate. 20 mm thick machined top plate, cooking surface 592 × 530 mm (3138 cm²); top weld sealed.
- Plate options. Optional ribbed plate sections and optional mirror-finish hard chrome plates.
- Elements. 3 × 2.4 kW stainless-steel sheathed heating elements.
- Thermostats. Single 50–300 °C thermostat; large heat-resistant reinforced knobs with easy-view settings.
- Splash guards. 2.5 mm 304 stainless-steel splash guards to the sides and rear.
- Grease management. 2.0 mm grease channel and stainless-steel grease drawer.
- Heavy-duty build. Welded hob surround with 1.5 mm 304 stainless bull nose; 1.2 mm 304 splashback and side panels; 0.9 mm 304 front panels.
- Indicator lights. Power and heating indicator lights.
- Bench mount. Four 63 mm diameter heavy-duty 1.2 mm 304 stainless bench legs with adjustable feet, height adjustable 80–105 mm.
- Front service. Control service through the front of the unit.
Best suited to
- Breakfast and brunch. Eggs, bacon and pancakes across one even plate.
- Burger and steak stations. A 20 mm plate that recovers quickly between loads.
- Bench-top installs. Sits on an existing bench on adjustable legs.
- Suite kitchens. Lines up with Waldorf fryers, ranges and cooktops at 805 mm deep.
Choose the bench model if you already have a sturdy stainless bench or want to build the griddle into a custom counter. A 600 mm plate suits cafes and smaller kitchens that want a dedicated griddle without giving up much line space. The thick plate also suits searing seafood and teppanyaki-style cooking, because it holds its temperature when a full load goes on. The same griddle is also available as GP8600E-CB (cabinet base) and GP8600E-LS (leg stand). If you are unsure which width or base suits your kitchen, share your floor plan with our team and we can check the fit before you order. Call 1300 089 974 for help planning a suite, or browse the Waldorf range.
Cleaning and maintenance
Scrape the plate while it is still warm and empty the grease drawer through the day; the 2.0 mm grease channel feeds it directly. The plate is finished front and rear with an overlap, so there are no traps for grease, and the splash guards and stainless exterior wipe clean with a soft cloth and mild detergent. Control service is through the front of the unit.
Installation, power and service
Allow 600 mm of width and 805 mm of depth; the unit stands 315 mm high (530 mm including the splashback). It needs 7.2 kW at 230–240 V, 1P+N+E, 30 A, connected by a licensed electrician; the connection sits 130 mm from the right-hand side, 32 mm from the rear and 740 mm from the floor. There is no gas connection or flue to plan. The bench legs adjust from 80 to 105 mm to level the griddle on your bench. Net weight is 118 kg. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What is the cooking surface of the GP8600E-B?
592 × 530 mm (3138 cm²) on a 20 mm machined plate.
How big is the GP8600E-B?
600 mm wide, 805 mm deep and 315 mm high (530 mm including the splashback).
How many heat zones does it have?
One zone with a 50–300 °C thermostat across the whole plate.
What power does it need?
7.2 kW at 230–240 V AC, 50/60 Hz, 1P+N+E, 30 A, hard-wired by a licensed electrician.
Is a ribbed or chrome plate available?
Yes. Ribbed plate sections and mirror-finish hard chrome plates are options at extra cost.
Can it sit on an existing bench?
Yes. Four stainless bench legs adjust from 80 to 105 mm.
