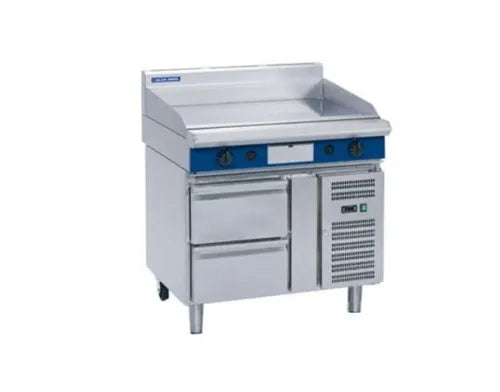

Blue Seal EP518-RB 1200mm Electric Griddle Refrigerated Base
1200 mm electric griddle, refrigerated base. 18 kW, 50–300 °C, 20 mm plate, 1192 × 530 mm cooking surface. 1200 × 812 × 1085 mm incl. splashback.
Hurry up, only 1 item left in stock.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal EP518-RB pairs a 1200 mm, three-zone electric griddle with a refrigerated base, in Moffat's Blue Seal Evolution Series. A 20 mm plate gives a 1192 × 530 mm cooking surface heated by nine 2 kW elements (18 kW), each zone set from 50 to 300 °C. Two GN 2/1 drawers below keep pans up to 100 mm deep at −2 to +8 °C. It stands 1085 mm high including the splashback.
Key features and benefits
Putting cold storage directly under a long griddle saves steps on every order. The EP518-RB's drawers run on a digital electronic thermostat with automatic defrost and evaporation, so there is no drain to plumb, and the base is rated for tropical climates. Above, three thermostats let you sear, cook and hold across one heavy plate that keeps temperature under load. Indicator lights and over-temperature cut-outs are standard. Grease runs to a stainless drawer, and the condensing unit comes out through the front for service.
Standard features
- Electric griddle. 1200 mm thermostatic electric griddle with a 1192 × 530 mm, 6318 cm² cooking surface.
- Heating elements. 9 × 2 kW stainless-steel sheathed elements, 18 kW in total.
- Thermostatic control. Separate left, centre and right heat zones; three 50–300 °C thermostats.
- Indicator lights. Power and heating lights show the griddle's status at a glance.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Optional ribbed plate sections or mirror-finish hard chrome plates.
- Over-temperature cut-out. Safety cut-outs guard against overheating.
- Grease drawer. A 2.5 mm grease channel and a stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm side panels and splashback, and an enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Refrigerated base. Self-contained matched modular base holding −2 to +8 °C, rated for tropical climates (class T).
- Two GN 2/1 drawers. Each takes pans up to 100 mm deep, on heavy-duty European telescopic guides.
- Digital control. Electronic thermostat with automatic defrost and automatic evaporation of defrost water, so no condensate drain is needed.
- Insulation and finish. 50 mm CFC-free foamed insulation, 304 stainless steel inside and out, and an anti-corrosion treated evaporator.
- Tool-free gaskets. Magnetic drawer gaskets that can be replaced without tools.
- Front service. Condensing unit removes through the front of the base.
- Legs. 63 mm heavy-duty 304 stainless-steel legs with adjustable feet.
Best suited to
- Protein stations. Chilled meat below, three cooking zones above.
- Gas-free kitchens. 18 kW of griddle on three-phase power.
- Tropical climates. A base rated climate class T.
- Long service lines. Cooking and cold storage in 1200 mm.
The EP518 comes as a bench model, on a leg stand, on a cabinet base or on a refrigerated base: see the EP518-B, EP518-LS, EP518-CB and EP518-RB. If two zones are enough, the 900 mm EP516-B is shorter, and with gas available the GP518-B is the same width. The EP518 draws 25 A per phase on a three-phase supply, so have your electrician confirm switchboard capacity before ordering. All Evolution units are 812 mm deep so they line up in one suite. Before delivery, check your doorways, corridors and the route to the kitchen against the packed size shown in the specifications, and plan for two people to move it. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The stainless-steel exterior wipes down easily, and the plate is finished front and rear with an overlap so there are no cleaning traps. Scrape fat into the 2.5 mm grease channel and empty the stainless-steel drawer after each service. Controls are serviced through the front of the unit; the refrigerated base condenser also comes out through the front.
Installation, power and service
Allow a 1200 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. The griddle is hard-wired by a licensed electrician to a 400–415 V three-phase supply, drawing 25 A per phase, with a total load of 18 kW. The refrigerated base plugs separately into a 10 A power point (1.8 A, 220–240 V); no drain is required. No gas or water is needed. Net weight is 180 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What supply does the EP518-RB need?
Three-phase 400–415 V for the griddle, drawing 25 A per phase (18 kW), plus a 10 A power point for the refrigerated base's 1.8 A cordset. A licensed electrician must install it.
What temperatures can the EP518-RB griddle run?
Each of its three zones has a 50–300 °C thermostat.
How cold does the refrigerated base run?
The two GN 2/1 drawers hold −2 to +8 °C on a digital electronic thermostat with automatic defrost; no drain is required.
How deep are the drawers?
Each GN 2/1 drawer takes pans up to 100 mm deep, on heavy-duty telescopic guides.
Can I get a ribbed or chrome plate?
Yes. Ribbed plate sections and mirror-finish hard chrome plates are options; the standard plate is 20 mm machined steel.
What does it weigh?
180 kg net; it measures 1200 × 812 × 1085 mm including the splashback.
