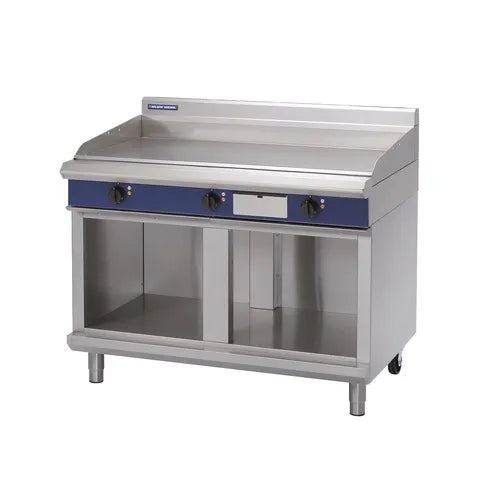

Blue Seal EP518-CB 1200mm Electric Griddle Cabinet Base
1200 mm electric griddle, cabinet base. 18 kW, 50–300 °C, 20 mm plate, 1192 × 530 mm cooking surface. 1200 × 812 × 1085 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal EP518-CB is a 1200 mm electric griddle on a cabinet base, from the Evolution Series made by Moffat. Nine 2 kW elements, 18 kW in total, heat a 20 mm plate with a 1192 × 530 mm cooking surface in three 50–300 °C zones. The double-skin cabinet can take an optional GN 1/1 racking kit for up to eight 65 mm pans. It runs on three-phase power and is 1085 mm high.
Key features and benefits
The EP518-CB combines the largest Evolution electric griddle with closed storage. Three thermostats split the plate into searing, cooking and holding zones, and the 20 mm plate holds temperature under heavy loads. Indicator lights and over-temperature cut-outs are standard. Below, the double-skin stainless cabinet keeps pans and supplies clean, and the optional racking kit adds GN 1/1 storage in one or two bays. Rear rollers and front adjustable feet make levelling and cleaning easier, and the grease drawer empties from the front.
Standard features
- Electric griddle. 1200 mm thermostatic electric griddle with a 1192 × 530 mm, 6318 cm² cooking surface.
- Heating elements. 9 × 2 kW stainless-steel sheathed elements, 18 kW in total.
- Thermostatic control. Separate left, centre and right heat zones; three 50–300 °C thermostats.
- Indicator lights. Power and heating lights show the griddle's status at a glance.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Optional ribbed plate sections or mirror-finish hard chrome plates.
- Over-temperature cut-out. Safety cut-outs guard against overheating.
- Grease drawer. A 2.5 mm grease channel and a stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm side panels and splashback, and an enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Cabinet base. Fully modular double-skin cabinet in 0.9 mm 304 stainless steel, inside and out, for a matched suite finish.
- Racking option. Optional GN 1/1 four-position racking kit, holding up to eight 65 mm GN 1/1 pans.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs, with two adjustable feet at the front and two rollers at the rear.
Best suited to
- Hotels and clubs. High-volume griddle service with storage below.
- All-electric kitchens. 18 kW over three zones without gas.
- Breakfast buffets. Three temperatures across one plate.
- Matched suites. A closed cabinet finish that lines up with Evolution units.
The EP518 comes as a bench model, on a leg stand, on a cabinet base or on a refrigerated base: see the EP518-B, EP518-LS, EP518-CB and EP518-RB. If two zones are enough, the 900 mm EP516-B is shorter, and with gas available the GP518-B is the same width. The EP518 draws 25 A per phase on a three-phase supply, so have your electrician confirm switchboard capacity before ordering. All Evolution units are 812 mm deep so they line up in one suite. Before delivery, check your doorways, corridors and the route to the kitchen against the packed size shown in the specifications, and plan for two people to move it. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The stainless-steel exterior wipes down easily, and the plate is finished front and rear with an overlap so there are no cleaning traps. Scrape fat into the 2.5 mm grease channel and empty the stainless-steel drawer after each service. Controls are serviced through the front of the unit.
Installation, power and service
Allow a 1200 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. The griddle is hard-wired by a licensed electrician to a 400–415 V three-phase supply, drawing 25 A per phase, with a total load of 18 kW. The front feet adjust and the rear rollers let you pull the unit out for cleaning behind it. No gas or water is needed. Net weight is 180 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How many heat zones does the EP518-CB have?
Three, left, centre and right, each with its own 50–300 °C thermostat.
What power supply does the EP518-CB need?
A 400–415 V three-phase supply, hard-wired by a licensed electrician. Total load is 18 kW, drawing 25 A per phase.
How big is the cooking surface?
1192 × 530 mm, or 6318 cm², on a 20 mm machined plate.
Can I get a ribbed or chrome plate?
Yes. Ribbed plate sections and mirror-finish hard chrome plates are options; the standard plate is 20 mm machined steel.
Does it need gas or water?
No. It is all-electric and needs only a hard-wired electrical connection installed by a licensed electrician.
What storage does the EP518-CB cabinet have?
An optional GN 1/1 four-position racking kit for one or two bays, holding up to eight 65 mm GN 1/1 pans.
