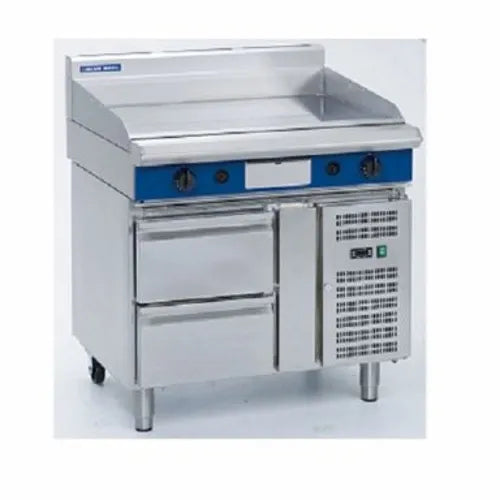

Blue Seal GP518-RB 1200mm Gas Griddle Refrigerated Base
1200 mm gas griddle, refrigerated base. 31 kW, 90–300 °C, 20 mm plate, 1192 × 530 mm cooking surface. 1200 × 812 × 1085 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal GP518-RB is a 1200 mm gas griddle on a refrigerated base, from the Evolution Series made by Moffat. Three 10.3 kW burners, 31 kW in total, heat a 20 mm plate with a 1192 × 530 mm cooking surface in three 90–300 °C zones. Below, two GN 2/1 drawers hold pans up to 100 mm deep at −2 to +8 °C. It is 1085 mm high including the splashback.
Key features and benefits
The GP518-RB turns 1200 mm of griddle into a complete protein station, with chilled stock in the drawers directly under the plate. The refrigerated base runs on a digital electronic thermostat with automatic defrost and evaporation, so no drain is needed, and it is rated for tropical kitchens. On top, three thermostats split the 20 mm plate into searing, cooking and holding zones. Flame failure pilots with piezo ignition and over-temperature cut-outs are standard, and the condensing unit services from the front.
Standard features
- Gas griddle. 1200 mm thermostatic gas griddle with a 1192 × 530 mm, 6318 cm² cooking surface.
- Burner system. Three 10.3 kW 3-bar chromed steel burners; individual pilot, flame failure and piezo ignition, 31 kW gross (105,700 Btu/h) in total.
- Thermostatic control. Separate left, centre and right heat zones; three 90–300 °C thermostats.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Ribbed plate or mirror chromed plate available as options.
- Over-temperature cut-out. Safety cut-out guards against overheating.
- Grease drawer. A stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 side panels and splashback, and a vitreous enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Refrigerated base. Self-contained matched modular base holding −2 to +8 °C, rated for tropical climates (class T).
- Two GN 2/1 drawers. Each takes pans up to 100 mm deep, on heavy-duty European telescopic guides.
- Digital control. Electronic thermostat with automatic defrost and automatic evaporation of defrost water, so no condensate drain is needed.
- Insulation and finish. 50 mm CFC-free foamed insulation, 304 stainless steel inside and out, and an anti-corrosion treated evaporator.
- Tool-free gaskets. Magnetic drawer gaskets that can be replaced without tools.
- Front service. Condensing unit removes through the front of the base.
- Legs. 63 mm heavy-duty 304 stainless-steel legs with adjustable feet.
Best suited to
- High-volume burger kitchens. Patties chilled in GN 2/1 drawers, seared directly above.
- Hotel breakfast lines. Cold stock below and three cooking zones above.
- Hot tropical kitchens. The base is climate class T, built for high ambient temperatures.
- Space-tight lines. Cooking and cold storage in one 1200 mm footprint.
The refrigerated base suits a dedicated griddle station where the cook should not leave the line. If you do not need chilled storage, the GP518-CB has a dry cabinet and the GP518-LS an open stand; the GP518-B mounts on a bench. For a 900 mm griddle with GN 1/1 refrigerated drawers, see the GP516-RB. The base needs a power point as well as gas. If you are planning a full line, add up the gas ratings of every appliance so your gas fitter can confirm the meter and supply pipe are large enough, and measure doorways for delivery. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel, and the plate is finished front and rear with an overlap so grease has nowhere to hide. Scrape fat into the channel and empty the stainless-steel grease drawer after each service. Controls are serviced and gas conversions are done through the front of the unit; burner service needs the plate removed; the refrigerated base condenser also comes out through the front.
Installation, power and service
Allow a 1200 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. Gas is an R ¾ inch BSP male connection rated at 31 kW gross (105,700 Btu/h), and it comes with a regulator for natural or LP gas plus conversion kits, so tell us your gas type when you order. A licensed gas fitter must install and commission it. The refrigerated base also needs a power point for its 1.8 A, 220–240 V cordset, which has a 13 A plug; no drain is required. Net weight is 242 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How cold does the GP518-RB refrigerated base run?
−2 to +8 °C, on a digital electronic thermostat with automatic defrost.
What size are the drawers?
Two GN 2/1 drawers, each taking pans up to 100 mm deep.
What does the GP518-RB need for installation?
An R ¾ inch BSP male gas connection sized for 31 kW gross, plus a power point for the base's 1.8 A, 220–240 V cordset with a 13 A plug. No drain is needed.
What gas types can it run on?
Natural gas or LP gas. It comes with a natural and LP regulator and gas type conversion kits; tell us which gas you have when you order.
How many heat zones does the griddle have?
Three, each with its own 90–300 °C thermostat.
How heavy is it?
Net weight is 242 kg; it measures 1200 × 812 × 1085 mm including the splashback.
