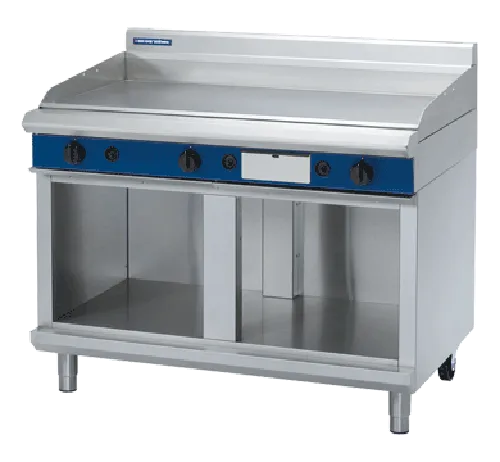

Blue Seal GP518-CB 1200mm Gas Griddle Cabinet Base
1200 mm gas griddle, cabinet base. 31 kW, 90–300 °C, 20 mm plate, 1192 × 530 mm cooking surface. 1200 × 812 × 1085 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal GP518-CB is a 1200 mm gas griddle on a cabinet base, from the Evolution Series made by Moffat. Three 10.3 kW burners, 31 kW in total, heat a 20 mm plate with a 1192 × 530 mm cooking surface in three zones at 90–300 °C. The double-skin cabinet can take an optional GN 1/1 racking kit in one or two bays, holding up to eight 65 mm pans.
Key features and benefits
The GP518-CB combines the largest Evolution griddle with closed storage. Left, centre and right zones each have their own thermostat, so one cook can sear, finish and hold across a single 1192 mm plate. The 20 mm plate stays hot under heavy loads. Below, the double-skin cabinet keeps pans clean and dry, and the optional racking kit adds GN 1/1 storage for prepared food. Flame failure pilots with piezo ignition and over-temperature cut-outs are standard, and rear rollers help with cleaning.
Standard features
- Gas griddle. 1200 mm thermostatic gas griddle with a 1192 × 530 mm, 6318 cm² cooking surface.
- Burner system. Three 10.3 kW 3-bar chromed steel burners; individual pilot, flame failure and piezo ignition, 31 kW gross (105,700 Btu/h) in total.
- Thermostatic control. Separate left, centre and right heat zones; three 90–300 °C thermostats.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Ribbed plate or mirror chromed plate available as options.
- Over-temperature cut-out. Safety cut-out guards against overheating.
- Grease drawer. A stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 side panels and splashback, and a vitreous enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Cabinet base. Fully modular double-skin cabinet in 0.9 mm 304 stainless steel, inside and out, for a matched suite finish.
- Racking option. Optional GN 1/1 four-position racking kit for one or two cabinet bays, holding up to eight 65 mm GN 1/1 pans.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs, with two adjustable feet at the front and two rollers at the rear.
Best suited to
- Hotels and clubs. High-volume griddle service with storage below.
- Breakfast buffets. Three zones for eggs, meats and pancakes at once.
- Grill and burger venues. A 6318 cm² plate for the busiest services.
- Matched suites. A closed cabinet finish that lines up with other Evolution units.
Choose the cabinet base for a tidy, closed front and storage that stays clean. The GP518-LS is the same griddle on an open leg stand, the GP518-RB has refrigerated drawers, and the GP518-B mounts on a bench. If you only need two zones, see the 900 mm GP516-CB. The cabinet base weighs 242 kg, so plan for delivery access. If you are planning a full line, add up the gas ratings of every appliance so your gas fitter can confirm the meter and supply pipe are large enough, and measure doorways for delivery. Browse the Blue Seal Evolution range or call 1300 089 974 for help.
Cleaning and maintenance
The exterior is easy-clean stainless steel, and the plate is finished front and rear with an overlap so grease has nowhere to hide. Scrape fat into the channel and empty the stainless-steel grease drawer after each service. Controls are serviced and gas conversions are done through the front of the unit; burner service needs the plate removed.
Installation, power and service
Allow a 1200 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. Gas is an R ¾ inch BSP male connection rated at 31 kW gross (105,700 Btu/h), and it comes with a regulator for natural or LP gas plus conversion kits, so tell us your gas type when you order. A licensed gas fitter must install and commission it. Net weight is 242 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What storage does the GP518-CB cabinet have?
A double-skin cabinet that takes an optional GN 1/1 four-position racking kit in one or two bays, up to eight 65 mm GN 1/1 pans.
How many heat zones does the GP518-CB have?
Three, each with its own 90–300 °C thermostat.
What gas supply does the GP518-CB need?
An R ¾ inch BSP male connection sized for 31 kW gross, installed by a licensed gas fitter.
What gas types can it run on?
Natural gas or LP gas. It comes with a natural and LP regulator and gas type conversion kits; tell us which gas you have when you order.
How big is the cooking surface?
1192 × 530 mm, or 6318 cm², on a 20 mm plate.
How heavy is it?
Net weight is 242 kg; it is 1200 × 812 × 1085 mm including the splashback.
