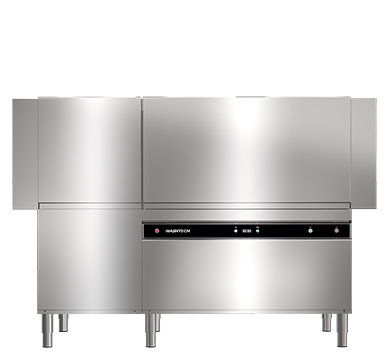

Washtech CD180 Rack Conveyor Dishwasher, 180 Racks per Hour
Rack conveyor dishwasher: 180 racks or 3,240 plates an hour, 600 mm pre-wash plus 1200 mm wash module, single stage final rinse.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Washtech CD180 is a rack conveyor dishwasher made in New Zealand by Washtech and distributed by Moffat. A 600 mm pre-wash module with a 1.5 HP pump feeds a 1200 mm single tank wash module with a 2.0 HP pump and a single stage final rinse, for 180 racks, or 3,240 plates, an hour. It uses 240 litres of hot water an hour and is 2100 mm long.
Key features and benefits
The pre-wash module is what lets the CD180 run faster than the CD120: it strips food soil before racks reach the main wash, so the wash tank stays cleaner and racks can move through at 180 an hour. Staff load at one end and the powerful drive, with safety clutch, carries racks through at a steady pace. Electromechanical controls are easy to maintain, auto-start idles the machine between racks, and removable stainless-steel wash arm cassettes and full width filter trays keep cleaning quick.
Standard features
- Rack conveyor. 180 racks or 3,240 plates an hour.
- Wash modules. 600 mm pre-wash module with 1.5 HP pump, then a 1200 mm single tank wash module with 2.0 HP pump.
- Single stage final rinse. Sanitising final rinse.
- Electromechanical controls. Easily maintained.
- Auto-start. Idles the dishwasher when no racks are being washed.
- Removable wash arm cassettes. Upper and lower, heavy-duty stainless steel, plus rinse arms.
- Full width filter trays. Stainless steel and easily removable.
- Powerful drive. With safety clutch.
- 240 L an hour. Hot water consumption at 65 °C.
- Heavy-duty stainless-steel construction. Built for continuous service.
Best suited to
- Hotels and resorts. Breakfast and banquet volumes.
- Clubs and RSLs. Bistro and function service.
- Hospitals and aged care. Continuous tray and plate washing.
- Universities and cafeterias. High-volume peaks.
The CD180 adds pre-wash to the CD120, which suits 120 racks an hour in a 1500 mm footprint. For smaller volumes, the AL high capacity passthrough washes up to 1,980 plates an hour. Plan the room around the 2100 mm length, with space at each end for loading and unloading racks. Before ordering, check the water supply temperature and pressure, the drain position and the power supply against the specification so the machine performs as rated from day one. Our team can help you size the machine to your covers and peak service, so you are not paying for capacity you will never use. If you are replacing an older warewasher, measure the existing water, drain and power positions so the installer knows what will need to move. Browse the Washtech range or call 1300 089 974.
Cleaning and maintenance
At the end of service, drain the tanks and lift out the full width stainless-steel wash filter trays to empty and rinse them. Remove the upper and lower wash arm cassettes and rinse arms, flush the jets, and refit them. Wipe the curtains and interior, leave the doors open so the machine can air, and keep the chemical supply topped up.
Installation, power and service
The CD180 is 2100 mm wide, 765 mm deep and 1455 mm high, and weighs 265 kg. It needs 65 °C hot water at 250–350 kPa and 20 L a minute through a ¾ in male connection, hose supplied, with double check valve backflow prevention; consumption is about 240 L an hour. Drainage is a 1.5 in BSP male connection to a 50 mm minimum line. Power is three phase 400–415 V, 27 A, 18 kW. Allow typical minimum extraction of 170 L/sec, confirmed by a ventilation engineer. Washtech is backed by Moffat's 5-2-2 warranty and national service network; call 1300 089 974 to confirm the current terms.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How many racks an hour does the CD180 wash?
180 racks an hour, or 3,240 plates.
What does the pre-wash module do?
The 600 mm pre-wash module, with its own 1.5 HP pump, removes food soil before racks reach the 1200 mm main wash module.
How much water does it use?
About 240 litres of 65 °C hot water an hour. Consumption varies with site conditions.
What power does it need?
Three phase 400–415 V, 27 A, 18 kW.
Does it need extraction?
Yes. Typical minimum extraction is 170 L/sec, but requirements vary by site, so consult a ventilation engineer.
What is included?
Two 500 mm dish racks, two 500 mm cup racks, two cutlery containers and a cutlery basket.
Does the CD180 need treated water?
Water quality affects results and machine life. The sheet sets limits of pH 7–8 and TDS up to 135, with maximums for chloride, sulphate, iron and chlorine; we can advise on a filter or softener if your supply is outside them.
