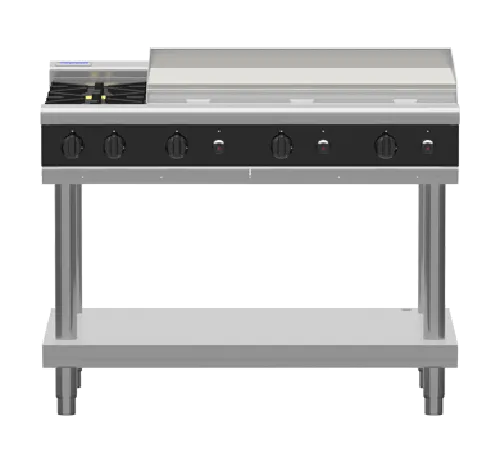

Waldorf Bold RNB8809G-LS 1200mm Gas Cooktop Leg Stand
1200 mm gas cooktop, 2 open burners and a 900 mm griddle, leg stand. 116 MJ/h, 32.2 kW. 1200 × 805 mm.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Waldorf RNB8809G-LS is a 1200 mm gas cooktop on a framed leg stand with a stainless-steel shelf, from the Waldorf Bold range made by Moffat. It combines two 28 MJ/h open burners with a 900 mm griddle, 116 MJ/h in total. It is 805 mm deep to match the rest of the Waldorf suite, with a heavy-duty stainless-steel finish. It comes in the Waldorf Bold finish, black as standard.
Key features and benefits
A 900 mm, three-section griddle with two open burners alongside suits kitchens where plate work leads but pans are still needed for sauces and sides. The framed leg stand gives an open stainless shelf for pots and trays and assembles without tools. Every control is a large heat-resistant knob with easy-view settings, and all parts are reached from the front for service. The hob is welded with a 1.5 mm 304 stainless-steel bull nose, and the cast-iron burners have forged brass caps that stand up to heavy pots day after day. Black vitreous enamel front panels are standard, and other colours are available.
Standard features
- Open burners. Two cast-iron 28 MJ/h open burners with forged brass caps and dual flame rings with a simmer rate.
- Flame failure. Flame failure protection on open burners as standard; pilot burners optional.
- Potstands. Vitreous enamelled cast-iron potstands; stainless-steel open burner spill covers.
- Simmer plates. Optional cast-iron simmer plates replace the potstands.
- Griddle plate. 900 mm griddle in 12 mm mild steel, cooking surface 892 × 475 mm (4237 cm²), with 2.5 mm 304 stainless-steel splash guards.
- Griddle burners. 20 MJ/h per 300 mm section with pilot, flame failure and piezo ignition as standard.
- Griddle position. Griddle standard on the right-hand side; available on the left to order or by conversion.
- Controls. Variable high-to-low controls with large heat-resistant reinforced knobs and easy-view settings.
- Spill trays. Stainless-steel spill trays under the burner and griddle sections.
- Heavy-duty build. Welded hob with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 splashback and side panels and 0.9 mm 304 front panels.
- Front service. Access to all parts from the front of the unit.
- Leg stand. Fully modular framed stand with a 0.9 mm 304 stainless-steel shelf and framed top for connection to the cooktop.
- Tool-free assembly. Quick assembly design, no tools required.
- Gas connection options. Suitable for rear or through-shelf gas connection to the cooktop.
- Backstop panel. Shelf-to-top stainless-steel backstop panel for convenience and rigidity.
- Fully modular. Lines up with the Waldorf 800 Series and Bold suites at 805 mm deep.
- Waldorf Bold finish. Black vitreous enamel finish to the front panels as the default colour; other colour options are available.
Best suited to
- Grill and burger kitchens. Three griddle zones plus two burners.
- Breakfast hotels. A long plate for eggs, bacon and pancakes.
- Open storage. Pots and trays on the stand shelf below.
- Kitchens on show. Bold black front panels, other colours available.
Choose the leg stand if you want open storage below that is easy to see into and clean around, and a light, quick-to-assemble base. The same top is available as a bench model (RNB8809G-B) and on a cabinet base (RNB8809G-CD). For a different finish or back height, see RNL8809G-LS or RN8809G-LS. Other 1200 mm configurations include RNB8800G-LS (8 open burners), RNB8803G-LS (6 open burners and a 300 mm griddle) and RNB8806G-LS (4 open burners and a 600 mm griddle). Joining caps seal the gaps between modules, and castors or plinth mounting are available for island suites. If you are unsure which width or base suits your kitchen, share your floor plan with our team and we can check the fit before you order. Every Waldorf module is 805 mm deep, so it lines up with Waldorf fryers, griddles and ranges in one suite. Call 1300 089 974 for help planning a line, or browse the Waldorf range.
Cleaning and maintenance
The burner heads lift off and the stainless-steel spill covers and spill trays under the burner and griddle sections slide out for washing. Scrape the griddle while warm and wipe the splash guards daily. The exterior is stainless steel, so a soft cloth and mild detergent keep it clean. All parts are reached from the front of the unit for servicing.
Installation, power and service
Allow 1200 mm of width and 805 mm of depth; the unit stands 915 mm high (1130 mm including the splashback). The gas rating is 116 MJ/h (32.2 kW), through an R ¾ in (BSP) male connection 130 mm from right-hand side, 32 mm from rear and 655 mm from floor. It comes with a natural and LP gas regulator and conversion kits, so tell us your gas type when ordering. A licensed gas fitter must install and commission it. The leg stand assembles without tools and suits rear or through-shelf gas connection. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How big is the RNB8809G-LS griddle?
892 × 475 mm (4237 cm²) across three 300 mm sections, each with a 20 MJ/h burner.
How big is the RNB8809G-LS?
1200 mm wide, 805 mm deep and 915 mm high (1130 mm including the splashback).
What gas types are available?
Natural gas or LP gas. Tell us your gas type when ordering; it comes with a regulator and conversion kits.
What is under the cooktop?
An open framed stand with a 0.9 mm stainless-steel shelf for pots and trays.
Are pilot burners available?
Open burners have flame failure as standard, and pilot burners are optional. Simmer plates can replace the potstands.
What colours does the RNB8809G-LS come in?
Black is the default Waldorf Bold colour, and other colour options are available.
