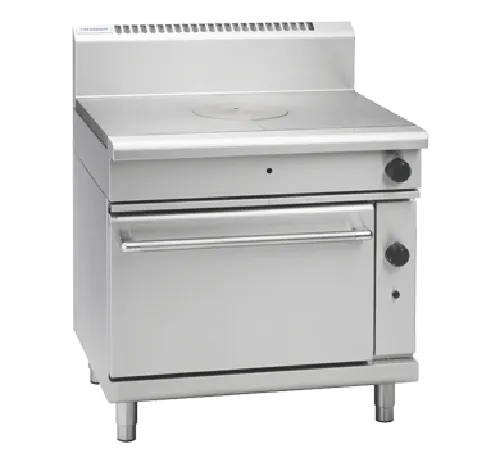

Waldorf 800 Series RN8110GEC 900mm Target Top Gas Range Electric Convection Oven
900 mm target top gas range, GN 2/1 electric convection oven. 45 MJ/h.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Waldorf RN8110GEC is a 900 mm target top gas range from the Waldorf 800 Series, made by Moffat. It has a 45 MJ/h cast-iron target top that reaches 500 °C at the centre on top, with a GN 2/1 electric convection oven below. It is 805 mm deep, so it lines up with the rest of the Waldorf suite. Two chrome racks come with the oven.
Key features and benefits
The machined cast-iron target top grades heat from a hot centre ring for searing and boiling to cooler edges for simmering, so many pans can share one surface. The electric convection oven pairs top and bottom elements with a 200 mm fan for even heat on every rack, 50–320 °C. The oven has a fully welded vitreous enamelled liner, four rack positions and a welded-frame drop-down door on a heavy-duty spring hinge, with a stay-cool handle. Everything sits on a galvanised steel chassis with a welded 304 stainless-steel bull nose, built for daily commercial use.
Standard features
- Target top. Three-piece heavy-duty machined cast-iron top with a removable centre and integral spill protection; up to 500 °C at the centre.
- Top burner. 45 MJ/h dual ring cast-iron burner with full pilot and flame failure protection.
- Oven. GN 2/1 electric convection oven; 665 × 590 × 385 mm; rack 660 × 540 mm; 4 rack positions.
- Oven thermostat. 50–320 °C thermostatic control; power and heating indicator lights.
- Convection fan. 100 W heavy-duty motor and 200 mm circulation fan.
- Oven elements. 4.5 kW bottom and 2.0 kW top heat elements; cast-iron even-heat sole plate.
- Oven door. Welded-frame drop-down door on a heavy-duty spring hinge, 0.9 mm 304 stainless outer, vitreous enamelled inner and high-density fibreglass insulation.
- Oven racks. Heavy-duty removable wire rack supports; two chrome wire oven racks supplied.
- Stay-cool handle. Stainless-steel door handle with cast metal mounts.
- Heavy-duty build. Welded hob with 1.5 mm 304 stainless bull nose, galvanised chassis and 150 mm stainless legs with adjustable feet.
- Front service. All parts front-accessible from the installed position.
Best suited to
- French-style cooking. Graded heat across one solid top.
- Batch baking. Fan-forced electric heat across four racks.
- Wall-side lines. Full splashback version.
If you are unsure which oven suits your menu, our team can talk you through static and convection options before you order. Choose a range when you want burners and an oven in one footprint, which saves line space in compact kitchens. The same top is available with other ovens: RN8110G (gas static oven), RN8110GC (gas convection oven) and RN8110GE (electric static oven). For a different back height or finish, see RNL8110GEC and RNB8110GEC. A static oven suits roasts, braises and pastry, while a convection oven bakes more evenly across full racks. Joining caps seal the gaps between modules, and castors or plinth mounting are available. Every Waldorf module is 805 mm deep, so it lines up with fryers, cooktops and griddles in one suite. Call 1300 089 974 for help planning a line, or browse the Waldorf range.
Cleaning and maintenance
Scrape and wipe the machined target top once cool; the centre ring lifts out for cleaning underneath. In the oven, the racking and sole plate are removable, and the vitreous enamelled liner and door inner wipe clean. The door can be lifted off for cleaning and service, its hinge spring is adjustable on the unit, and all parts are reached from the front.
Installation, power and service
Allow 900 mm of width and 805 mm of depth; the range stands 915 mm to the hob and 1130 mm including the splashback. Gas rating is 45 MJ/h (16.2 kW) through an R ¾ in BSP male connection, with a natural and LP gas regulator and conversion kits supplied; a licensed gas fitter must install it. The electric oven needs 6.6 kW, on a single-phase or three-phase supply connected by a licensed electrician. Net weight is 275 kg. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How hot does the RN8110GEC target top get?
Up to 500 °C at the centre ring, with heat falling away towards the edges for simmering and holding.
How big is the oven?
The oven is 665 × 590 × 385 mm inside, GN 2/1 capacity with four rack positions. Two chrome racks are supplied.
What temperature range does the oven have?
50–320 °C.
What power does the electric oven need?
6.6 kW: 230–240 V AC, 1P+N+E, 27.7 A; or 400–415 V AC, 3P+N+E, L1 9.4 A, L2 9.4 A, L3 9.0 A (50/60 Hz).
What gas types are available?
Natural gas or LP gas. Tell us your gas type when ordering; conversion kits are supplied.
How big is the range?
900 mm wide, 805 mm deep and 915 mm to the hob, 1130 mm including the splashback. Net weight is 275 kg.
How do I clean the oven?
The racking and sole plate lift out, the enamelled liner wipes clean, and the door lifts off for easier access.
