Waldorf 800 Series RN8100G-B 900mm Gas Target Top Bench Model
900 mm gas target top, bench model. 45 MJ/h, 12.5 kW. 900 × 805 mm.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

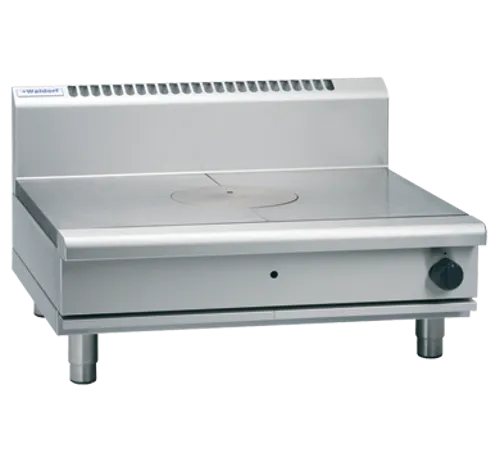

The Waldorf RN8100G-B is a 900 mm gas target top for mounting on an existing bench, from the Waldorf 800 Series made by Moffat. It has a three-piece machined cast-iron target top over a 45 MJ/h dual ring burner, with the plate reaching up to 500 °C at the centre. It is 805 mm deep to match the rest of the Waldorf suite, with a heavy-duty stainless-steel surround.
Key features and benefits
A target top gives graded heat across one solid surface: hottest at the removable centre ring for searing and fast boiling, cooler towards the edges for simmering and holding, so many pans can share one plate. The 50 mm refractory brick lined burner box holds the heat, and integral heat fins define the zones. It stands on four 63 mm stainless-steel bench legs that adjust from 80 to 105 mm. The machined top sits at modular height, so it forms a seamless work surface with the rest of the suite. Full pilot and flame failure protection come standard, and the welded hob surround has a 1.5 mm 304 stainless-steel bull nose.
Standard features
- Cast-iron target top. Three-piece heavy-duty cast-iron top with a fully machined surface and a removable centre with integral spill protection.
- Heat zones. Integral heat fins define the heat zones; up to 500 °C at the centre.
- Dual ring burner. 45 MJ/h dual ring cast-iron burner on a single control, with full pilot and flame failure protection.
- Heat retention. 50 mm refractory brick lined burner box.
- Matched height. Machined top at modular height for a seamless work surface with the suite.
- Spill trays and tool. Two vitreous enamelled spill trays; heavy-duty centre casting removal tool supplied.
- Heavy-duty build. Welded hob with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 splashback and side panels and 0.9 mm 304 front panels.
- Front service. Access to all parts from the front of the unit.
- Bench mount. Four 63 mm diameter heavy-duty 1.2 mm 304 stainless-steel bench legs with adjustable feet, height adjustable 80–105 mm.
- Fully modular. Lines up with the Waldorf 800 Series and Bold suites at 805 mm deep.
Best suited to
- French-style kitchens. Graded heat for many pans at once.
- Stocks and sauces. Hot centre for boiling, cooler edges for holding.
- Bench-top installs. Sits on an existing bench on adjustable legs.
- Standard height. Splashback version for lines set against a wall.
Choose the bench model if you already have a sturdy stainless bench, or want to build the cooktop into a custom counter or pass. The same top is available on a leg stand (RN8100G-LS), on a cabinet base (RN8100G-CB) and on a refrigerated base (RN8100G-RB). For a different finish or back height, see RNL8100G-B. Joining caps seal the gaps between modules, and castors or plinth mounting are available. If you are unsure which width or base suits your kitchen, share your floor plan with our team and we can check the fit before you order. Every Waldorf module is 805 mm deep, so it lines up with Waldorf fryers, griddles and ranges in one suite. Call 1300 089 974 for help planning a line, or browse the Waldorf range.
Cleaning and maintenance
Let the plate cool, then scrape and wipe the machined cast-iron surface; the integral spill protection and two vitreous enamelled spill trays catch overflow, and the centre ring lifts out with the supplied removal tool for cleaning underneath. The exterior is stainless steel, and all parts are reached from the front for servicing.
Installation, power and service
Allow 900 mm of width and 805 mm of depth; the unit stands 315 mm high (530 mm including the splashback). The gas rating is 45 MJ/h (12.5 kW), through an R ¾ in (BSP) male connection 130 mm from right-hand side, 32 mm from rear and 655 mm from floor. It comes with a natural and LP gas regulator and conversion kits, so tell us your gas type when ordering. A licensed gas fitter must install and commission it. The bench legs adjust from 80 to 105 mm to level the cooktop on your bench. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How hot does the RN8100G-B get?
Up to 500 °C at the centre of the plate. Heat falls away towards the edges for simmering and holding.
How big is the RN8100G-B?
900 mm wide, 805 mm deep and 315 mm high (530 mm including the splashback).
What gas types are available?
Natural gas or LP gas. Tell us your gas type when ordering; it comes with a regulator and conversion kits.
Can it sit on an existing bench?
Yes. It has four stainless bench legs that adjust from 80 to 105 mm.
How do I clean under the centre ring?
Lift it out with the heavy-duty centre casting removal tool supplied with the unit.
