Waldorf 800 Series PCL8140G 450mm Gas Pasta Cooker Low Back
450 mm gas pasta cooker. 40 L pan, six baskets, 47 MJ/h.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

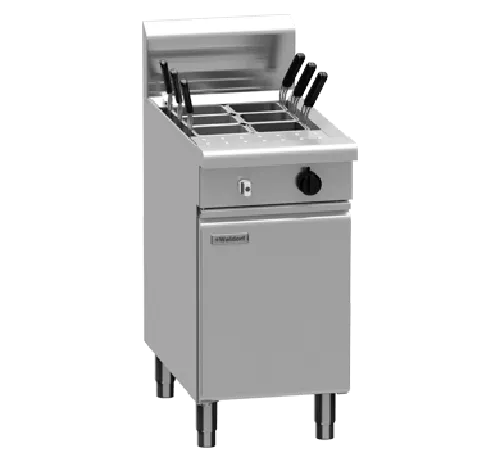

The Waldorf PCL8140G is a 450 mm single-pan gas pasta cooker from the Waldorf 800 Series, made by Moffat. It has a 40 L open pan in 316 stainless steel, heated by a patented infra-red burner system rated at 47 MJ/h on natural gas, and comes with six stainless pasta baskets. This low back version stands 970 mm high for island suites.
Key features and benefits
Infra-red burners bring 40 L back to the boil quickly between batches, and a millivolt gas valve means it needs no electrical supply at all. Burner control runs from a high boil down to a standby simmer, with flame failure on the pilot and piezo ignition. The 316 stainless pan resists the salt in pasta water, and the fine-adjustment faucet refreshes water and skims starch over the overflow while you cook. A hinged basket drain stand lets cooked pasta drain over the pan, and a safety cut-out protects against the pan boiling dry.
Standard features
- Pan. 40 L open pan in 1.5 mm 316 stainless steel; 365 × 405 mm, 165 mm basket immersion depth.
- Burner. Patented infra-red burner system; 47 MJ/h (13 kW) natural gas, 46 MJ/h (12.8 kW) LP gas.
- Gas controls. Variable high boil to standby simmer control; millivolt gas valve (no electrical supply); flame failure on pilot; piezo ignition to the standing pilot.
- Safety. Pan protection safety cut-out thermostat for empty pan or boil-out.
- Baskets. Six stainless perforated baskets, 125 × 165 × 180 mm deep, with moulded handles; stainless wire basket support grid.
- Water. Integrated fine-adjustment faucet for filling, refreshing and starch skimming; 25 mm skimming overflow.
- Drain stand. Hinged basket drain stand.
- Drain. 25 mm (1 in) drain valve.
- Construction. Welded 1.5 mm 304 bull nose and splashback, 1.2 mm 304 side panels, double-skin door with 0.9 mm 304 exterior, 150 mm stainless legs with adjustable feet.
Best suited to
- Italian restaurants. Cooking pasta to order in individual baskets.
- Noodle bars. Noodles and dumplings in batches.
- Hotels and banquets. Blanching vegetables and cooking pasta in volume.
- Suite kitchens. A 450 mm module beside a range or fryer.
- Cafes with pasta menus. Fast, consistent pasta portions.
- Blanching. Greens and vegetables refreshed in batches.
- Island suites. The low back keeps sightlines open across the pass.
Cooking pasta to order in individual baskets keeps portions consistent and lets the kitchen par-cook in advance and finish in seconds during service. Six baskets let one cook run several orders at different stages, and the starch-skimming faucet keeps the water clear through a long service. Extra square baskets and rectangular 320 × 165 mm baskets are available, along with side splash guards. The gas model needs no power, which suits sites where electrical capacity is tight. Other versions are PC8140E, PC8140E7, PC8140G and PCL8140E. Call 1300 089 974 for help choosing, or browse the Waldorf range.
Cleaning and maintenance
Drain the pan at the end of service through the 25 mm drain valve, then lift out the basket support grid and wash the open 316 stainless pan; descale it regularly in hard-water areas. The baskets and drain stand wash in a sink or dishwasher, and the stainless exterior wipes clean with mild detergent. All parts are reached from the front for servicing.
Installation, power and service
Allow 450 mm of width and 805 mm of depth; the unit stands 915 mm high (970 mm including the low back). The gas connection is R ¾ in (BSP) male, 300 mm from the right-hand side, 35 mm from the rear and 125 mm from the floor; a natural and LP regulator is supplied, and a licensed gas fitter must install it. Cold water connects through an R ½ in (BSP) male fitting 50 mm from the left-hand side, 556 mm from the rear and 140 mm from the floor. The 1 in BSP male drain, 118 mm from the left-hand side, must go to a drain suitable for boiling water. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What is the capacity of the PCL8140G?
40 L of water in a 365 × 405 mm 316 stainless pan, with six baskets supplied.
Does it need power?
No. It uses a millivolt gas valve, so no electrical supply is needed.
How is starch removed?
The fine-adjustment faucet refreshes the water and skims starch over the 25 mm overflow.
Does it have a lid?
No. It is an open pan with a hinged basket drain stand.
What drain does it need?
A 1 in BSP male drain connection to a system suitable for boiling water.
Are other baskets available?
Yes: extra square baskets and rectangular 320 × 165 × 180 mm baskets.
What is a low back model?
It has a lower back, 970 mm overall, instead of the 1130 mm splashback, which suits island suites.
