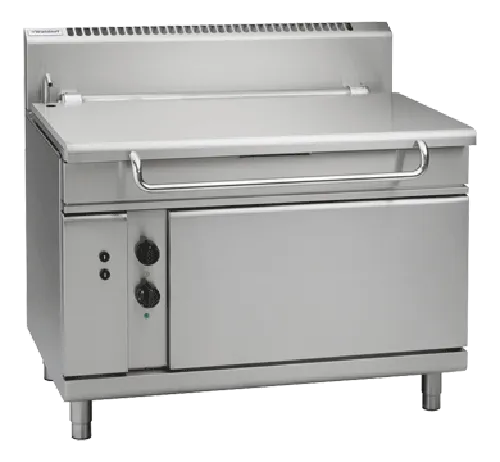

Waldorf 800 Series BPL8120GE 1200mm Gas Tilting Bratt Pan Electric Tilt Low Back
1200 mm gas tilting bratt pan, electric power tilt, low back. 120 L pan, 90 MJ/h.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Waldorf BPL8120GE is a 1200 mm gas tilting bratt pan from the Waldorf 800 Series, made by Moffat. It has a 120 L stainless-steel pan with a 12 mm even-heat base and a 1080 × 450 mm (4860 cm²) cooking surface, heated by a single 8 bar stainless-steel burner rated at 90 MJ/h, with electric power tilt. This low back version suits island suites.
Key features and benefits
A bratt pan does the work of a stockpot, a frypan and a griddle in one: sear mince or diced meat on the 12 mm base, then add liquid to braise, simmer sauces or boil pasta, and tip the finished batch out through the large pouring spout. Pan up and down switches drive the electric tilt, so a full pan empties without effort. Automatic pilot ignition and flame failure are fitted, and an electric thermostat controls the burner from 50 to 320 °C. An over-temperature cut-out protects the pan, and a quarter-turn water valve fills it from the cold-water supply.
Standard features
- Pan. 120 L full stainless-steel pan, 2.0 mm body, seamless with rounded corners; 1080 × 450 mm (4860 cm²) cooking surface, 215 mm deep.
- Even-heat base. 12 mm thick stainless-steel pan base.
- Burner. Single 8 bar stainless-steel burner, 90 MJ/h, 25 kW; automatic pilot ignition and flame failure.
- Thermostat. 50–320 °C electric thermostatic burner control, with power and heating lights.
- Safety cut-out. Over-temperature safety cut-out.
- Tilting. Electrically powered pan tilt with pan up and down switches.
- Water fill. Quarter-turn water valve control.
- Pouring spout. Large-capacity pouring spout.
- Lid. Heavy-duty spring-balanced hinge; 1.5 mm 304 stainless lid usable as bench-top workspace, with a full-width handle.
- Heavy-duty build. Galvanised steel chassis, 1.2 mm 304 stainless splashback and side panels, 0.9 mm 304 front panels, 63 mm stainless legs with adjustable feet.
- Front service. Connection access via front service panels; all parts reached from the front.
Best suited to
- Institutional kitchens. Batch cooking 120 L of soup, curry or mince at a time.
- Catering and functions. Braise, sauté and boil in one pan.
- Hotels and clubs. Bulk sauces and stocks with easy tip-out.
- Production kitchens. Fewer pots on the stove and less washing up.
- Island suites. The low back keeps sightlines open across the pass.
At 1200 mm wide with 120 L of capacity it suits large institutional and banquet kitchens that cook in big batches. The electric tilt is worth having when the pan is full and staff pour often. The lid lies flat when closed, so it doubles as bench space in a tight kitchen. Many kitchens use a bratt pan in place of several stockpots on the burners, which frees up range space during service. Other versions of this pan are BPL8120E, BPL8120EE and BPL8120G. If you are unsure which size suits your volumes, our team can help before you order. Call 1300 089 974, or browse the Waldorf range.
Cleaning and maintenance
The pan is seamless stainless steel with rounded corners, so it washes out with no corners to trap food: fill with warm water and detergent, scrub, then tilt to drain through the spout. The stainless exterior wipes clean with a soft cloth and mild detergent. The lid hinge is designed for easy service, and connections and parts are reached through the front service panels.
Installation, power and service
Allow 1200 mm of width and 805 mm of depth; the unit stands 915 mm high (970 mm including the low back), and 1600 mm with the lid open. The gas rating is 90 MJ/h (25 kW), through an R ¾ in (BSP) male connection 60 mm from the left-hand side, 305 mm from the rear and 122 mm from the floor; a natural and LP regulator and conversion kits are supplied. It also needs a 10 A power point for its fitted plug (220–240 V, 1 A). The cold-water supply is a ½ in tube connection via a 15 mm crox fitting, 550 kPa maximum, 270 mm from the side, 574 mm from the rear and 252 mm from the floor. Plan a floor drain in front of the spout. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What is the capacity of the BPL8120GE?
120 L, with a 1080 × 450 mm (4860 cm²) cooking surface and a 215 mm deep pan.
How does the pan tilt?
With electric power tilt, using pan up and down switches.
How much gas does it use?
90 MJ/h (25 kW) from a single 8 bar stainless-steel burner. It also plugs into a 10 A power point.
Does it need a water connection?
Yes. A cold-water connection feeds the quarter-turn fill valve: ½ in tube via a 15 mm crox fitting, 550 kPa maximum.
How much clearance does the lid need?
The unit is 1600 mm high with the lid open, so allow for that under shelves or canopies.
What temperature range does it have?
50 to 320 °C, with an over-temperature safety cut-out.
What is a low back model?
It has a lower back, 970 mm overall, instead of the 1130 mm splashback, which suits island suites.
