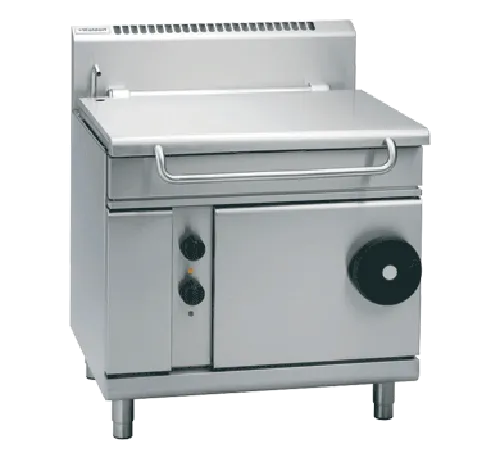

Waldorf 800 Series BPL8080E 900mm Electric Tilting Bratt Pan Low Back
900 mm electric tilting bratt pan, manual handwheel tilt, low back. 80 L pan, 12 kW.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Waldorf BPL8080E is a 900 mm electric tilting bratt pan from the Waldorf 800 Series, made by Moffat. It has an 80 L stainless-steel pan with a 12 mm even-heat base and a 780 × 450 mm (3510 cm²) cooking surface, heated by 12 kW of elements, with manual handwheel tilt. This low back version suits island suites.
Key features and benefits
A bratt pan does the work of a stockpot, a frypan and a griddle in one: sear mince or diced meat on the 12 mm base, then add liquid to braise, simmer sauces or boil pasta, and tip the finished batch out through the large pouring spout. A handwheel with a fold-away handle tilts the pan smoothly for pouring. A 50–320 °C thermostat controls the clad elements for even heat across the base. An over-temperature cut-out protects the pan, and a quarter-turn water valve fills it from the cold-water supply.
Standard features
- Pan. 80 L full stainless-steel pan, 2.0 mm body, seamless with rounded corners; 780 × 450 mm (3510 cm²) cooking surface, 215 mm deep.
- Even-heat base. 12 mm thick stainless-steel pan base.
- Elements. 3 × 4 kW stainless-steel sheathed elements clad to the pan base, 12 kW in total.
- Thermostat. 50–320 °C thermostatic control, with power and heating lights.
- Safety cut-out. Over-temperature safety cut-out.
- Tilting. Manually operated pan lift handwheel with fold-away handle.
- Water fill. Quarter-turn water valve control.
- Pouring spout. Large-capacity pouring spout.
- Lid. Heavy-duty spring-balanced hinge; 1.5 mm 304 stainless lid usable as bench-top workspace, with a full-width handle.
- Heavy-duty build. Galvanised steel chassis, 1.2 mm 304 stainless splashback and side panels, 0.9 mm 304 front panels, 63 mm stainless legs with adjustable feet.
- Front service. Connection access via front service panels; all parts reached from the front.
Best suited to
- Institutional kitchens. Batch cooking 80 L of soup, curry or mince at a time.
- Catering and functions. Braise, sauté and boil in one pan.
- Hotels and clubs. Bulk sauces and stocks with easy tip-out.
- Production kitchens. Fewer pots on the stove and less washing up.
- Island suites. The low back keeps sightlines open across the pass.
At 900 mm wide with 80 L of capacity it suits restaurants, clubs and aged-care kitchens that cook in batches. Manual tilt keeps the design simple, and electric power tilt is available as an option. The lid lies flat when closed, so it doubles as bench space in a tight kitchen. Many kitchens use a bratt pan in place of several stockpots on the burners, which frees up range space during service. Other versions of this pan are BPL8080EE, BPL8080G and BPL8080GE. If you are unsure which size suits your volumes, our team can help before you order. Call 1300 089 974, or browse the Waldorf range.
Cleaning and maintenance
The pan is seamless stainless steel with rounded corners, so it washes out with no corners to trap food: fill with warm water and detergent, scrub, then tilt to drain through the spout. The stainless exterior wipes clean with a soft cloth and mild detergent. The lid hinge is designed for easy service, and connections and parts are reached through the front service panels.
Installation, power and service
Allow 900 mm of width and 805 mm of depth; the unit stands 915 mm high (970 mm including the low back), and 1600 mm with the lid open, so check overhead clearance. It needs 12 kW at 400–415 V, 50/60 Hz, 3P+N+E, 17 A per phase, connected by a licensed electrician; the entry is 60 mm from the left-hand side, 405 mm from the rear and 150 mm from the floor. The cold-water supply is a ½ in tube connection via a 15 mm crox fitting, 550 kPa maximum, 270 mm from the side, 574 mm from the rear and 252 mm from the floor. Plan a floor drain in front of the spout. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What is the capacity of the BPL8080E?
80 L, with a 780 × 450 mm (3510 cm²) cooking surface and a 215 mm deep pan.
How does the pan tilt?
With a manual handwheel that has a fold-away handle. Electric power tilt is available on the matching E-suffix model.
What power does it need?
12 kW at 400–415 V, 50/60 Hz, 3P+N+E, 17 A per phase, hard-wired by a licensed electrician.
Does it need a water connection?
Yes. A cold-water connection feeds the quarter-turn fill valve: ½ in tube via a 15 mm crox fitting, 550 kPa maximum.
How much clearance does the lid need?
The unit is 1600 mm high with the lid open, so allow for that under shelves or canopies.
What temperature range does it have?
50 to 320 °C, with an over-temperature safety cut-out.
What is a low back model?
It has a lower back, 970 mm overall, instead of the 1130 mm splashback, which suits island suites.
