Waldorf 800 Series CSL8450E 450mm Electric Chip Scuttle Low Back
450 mm electric chip scuttle. 1.0 kW infra-red heater.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

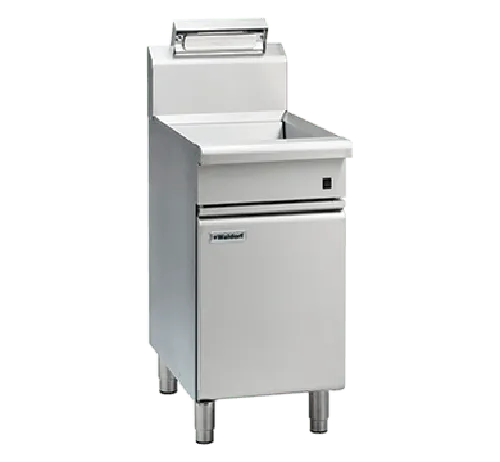

The Waldorf CSL8450E is a 450 mm electric chip scuttle from the Waldorf 800 Series, made by Moffat. A 1.0 kW infra-red ceramic heater above keeps fried food hot in a stainless pan with a removable scoop and drain screen, so chips stay crisp between fryer baskets. It sits beside a Waldorf fryer at the same 805 mm depth.
Key features and benefits
Holding chips under radiant heat with a drain screen below lets excess oil run off while the food stays hot and crisp, which is far better than piling it into a bowl. A single on/off power switch makes it simple for any staff member to run, and the ceramic infra-red heater sits clear of the pan so you can scoop and portion easily. The stainless pan and drain screen lift out for cleaning, and all service access is from the front.
Standard features
- Heater. 1.0 kW infra-red ceramic heater.
- Pan. Easy-clean stainless-steel pan.
- Drain screen. Removable stainless scoop and drain screen.
- Controls. On/off power and heater switch.
- Construction. Welded 1.5 mm stainless bull nose, 1.2 mm stainless splashback and side panels, 150 mm stainless legs with adjustable feet.
- Front service. All service access from the front of the unit.
Best suited to
- Fish and chip shops. Holding chips between batches.
- Pubs and clubs. Chips and wedges ready to plate.
- Fryer stations. Matches Waldorf fryers in a suite.
- Busy service. Portion from the pan while the fryer recovers.
- Takeaway counters. Hot chips ready to season and bag.
- Pub kitchens. Wedges and fried sides held crisp.
- Island suites. The low back keeps sightlines open across the pass.
Placing the scuttle next to the fryers means the cook can drop, drain and hold in one step, then portion straight to the plate or the bag. At 450 mm wide it fits the Waldorf modular grid, so it lines up with a Waldorf FN8127E electric fryer or a gas fryer beside it. Salt and season in the pan, then serve; the heat keeps the chips crisp while the next basket cooks, which shortens ticket times in a rush. The low back and splashback versions are CS8450E and this model. Call 1300 089 974 for help planning a fryer station, or browse the Waldorf range.
Cleaning and maintenance
Switch off and let the heater cool, then lift out the drain screen and wash it with the stainless pan. Wipe the stainless exterior with a soft cloth and mild detergent. Keep the ceramic heater free of splashes, and check it regularly for damage. All service access is from the front.
Installation, power and service
Allow 450 mm of width and 805 mm of depth; the unit is 915 mm high to the work surface, 1085 mm including the low back. It needs 1 kW at 220–240 V, single phase, 4.5 A; the electrical connection is 90 mm from the right-hand side and 200 mm from the floor. There is no gas or water connection. The legs have adjustable feet to level it with the fryer beside it. Moffat supports Waldorf equipment through its national service network; call 1300 089 974 to confirm current warranty cover.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What does the CSL8450E do?
It holds fried food hot under a 1.0 kW infra-red ceramic heater, with a drain screen so oil runs off.
What power does it need?
1 kW at 220–240 V single phase, 4.5 A.
Is the drain screen removable?
Yes. The stainless scoop and drain screen lift out for cleaning.
How big is the CSL8450E?
450 mm wide and 805 mm deep, 915 mm to the work surface.
Does it match Waldorf fryers?
Yes. It is a 450 mm module at the same 805 mm depth.
Does it need gas or water?
No. It is electric only.
