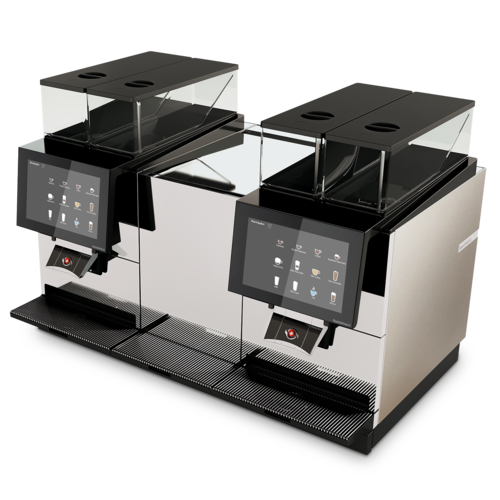

Thermoplan Super-automatic Espresso Machine BW4 CTM & CTMRL (TWINTOWER)
The BW4 CTM & CTMRL (TWINTOWER) is a Thermoplan Black&White4 super-automatic espresso machine, built in Weggis, Switzerland and supplied through Hospitality Connect. The Black&White4 platform is designed for medium to high daily demand of up to 500 cups, and is used in restaurants, hotels, catering, bakeries, convenience stores and quick service restaurants.
Specifications
- Brand: Thermoplan Black&White4 - supplied
- Product Type: Super-automatic espresso machine
- Configuration: TwinTower - two CTM machines conjoined by a shared 9L milk fridge
- Grinders & Hoppers: Four ceramic grinders, four 1.7kg bean hoppers
- Milk System: Dual milk system, hot and cold milk foam
- Refrigeration: Shared 9 litre milk fridge
- Output Capacity: Up to 500 cups per day (medium to high demand)
- Hourly Output: Up to 240 espresso, 200 coffee, 140 cappuccino, 120 tea or 80 chocolate drinks per hour
- Display: 10" touch display
- Electrical Connection: 1 phase 220-240V 50-60Hz, 5800-7100W, 32A; or 3 phase 380-415V, 5800-7100W, 3 x 16A
- Water Connection: 3/8" G, 2-4 bar supply pressure
- Dimensions: See Thermoplan data sheet - not published in available sources
- Feet Height: 57mm standard, 87mm optional; four-sided cover base available
- Grind Control: ISQ (Intelligent Shot Quality) - adjusts the grinder automatically to hold the espresso recipe
- Cleaning: Daily automated cleaning cycle
- Telemetry: Thermoplan Connect remote monitoring
- Security: Lockable bean hoppers and lockable drawer
- Origin: Made in Weggis, Switzerland, using 100% renewable energy
- Warranty: Confirm current warranty term before ordering
Features
- Two CTM2P Espresso machines conjoined by 9L milk fridge
- Dual milk system
- Four 1.7kg hoppers
- Four ceramic grinders
- World class cold and hot milk foam
- ISQ automatically adjusts grinders to automatically maintain your espresso recipe without requiring intervention
- Daily automated cleaning cycle
- Thermoplan Connect telemetry system
- Lockable bean hoppers and lockable draws
- 10" inch touch display
Installation & Site Requirements
- Commercial installation required - electrical, mains water and drainage
- Single phase 32A or three phase 3 x 16A supply - confirm switchboard capacity before ordering
- Mains water connection 3/8" G at 2-4 bar; water filtration strongly recommended
- Two machines - allow double the counter width and confirm electrical capacity for both towers
- Allow clearance above the machine for hopper filling and servicing
Why Buy From Hospitality Connect
- Genuine Thermoplan equipment, Swiss engineered and built
- Australian parts, service and training support
- Thermoplan Connect telemetry for remote monitoring and proactive servicing
