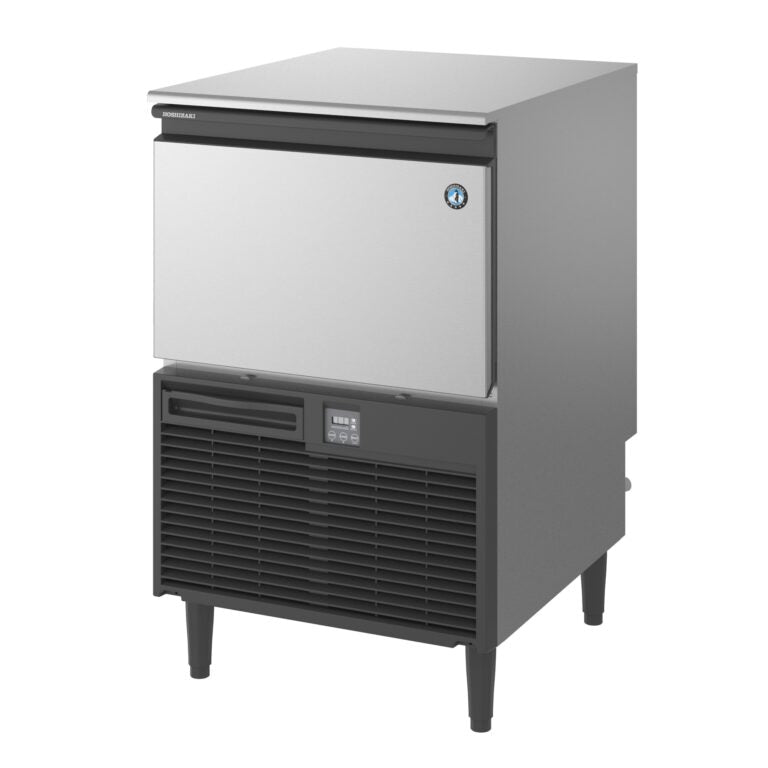

HOSHIZAKI ICE MAKER CRESCENT KM-80C-HC Drain Pump
HOSHIZAKI ICE MAKER CRESCENT KM-80C-HC Drain Pump
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Hoshizaki KM-80C-HC Crescent Ice Maker with Drain Pump is a high-performance commercial ice machine built for busy cafés, bars, restaurants, and hospitality venues that require reliable, high-volume ice production. With a capacity of up to 75kg of premium Crescent Edge ice per 24 hours, this unit ensures a consistent supply of ice even during peak service periods.
Featuring an integrated drain pump, this model offers flexible installation options—ideal for locations where gravity drainage is not available. Combined with Hoshizaki’s advanced KM Edge technology, the enlarged bonded evaporator surface accelerates freeze and harvest cycles, allowing you to produce more ice in less time and maximise operational efficiency.
The signature Crescent Edge ice is crystal clear, hard, and slow melting, improving beverage presentation while reducing dilution. Designed to meet strict hygiene standards, this self-contained ice maker with drain pump is a dependable solution for demanding commercial environments.
Key Features:
High-capacity commercial ice maker with drain pump – up to 75kg per day
Integrated drain pump for flexible installation
Produces premium Crescent Edge ice – clear, hard, and slow melting
Advanced KM Edge evaporator technology for faster ice production
Air-cooled system for efficient operation
Compact, self-contained design for commercial kitchens
Meets strict hygiene and food safety standards
Performance & Specifications:
Production Capacity (24hrs):
68kg @ 21°C Air / 15°C Water
55kg @ 32°C Air / 21°C Water
Storage Capacity: 34kg
Freeze Cycle Time: Approx. 23 minutes
Ice Per Cycle: 1.15kg (approx. 130 cubes)
Dimensions:
605mm (W) x 712mm (D)
842mm (H) including hex bolt legs
988mm (H) with 150mm adjustable legs
Net Weight: 50kg | Packed Weight: 63kg
Technical Details:
Cooling System: Air-cooled
Power Supply: 1 Phase, 220–240V, 50Hz (10A plug)
Amperage: Running 2.1A | Starting 12.5A
Refrigerant: R290 (147g)
Operating Conditions:
Ambient Temperature: 7°C – 38°C
Water Temperature: 7°C – 32°C
Water Pressure: 0.07 – 0.8 MPa (0.7 – 8 bar)
Voltage Range: Rated Voltage ±6%
Specifications
Specifications
| Type: Self-Contained Crescent Ice Maker with Drain Pump | |
|---|---|
| DimensionsWidth: 605mmDepth: 712mmHeight: 982mm–1005mm (adjustable legs fitted) | |
| Ice ProductionProduction Capacity: Up to 75kg per 24 hoursIce Type: Crescent Edge IceCooling System: Air Cooled | |
| Storage CapacityIntegrated Storage Bin Capacity: 34kg | |
| Ice CharacteristicsHard crystal-clear crescent iceSlow-melting performanceReduced beverage dilutionFree-flowing ice designExcellent beverage presentationIdeal for cocktails, soft drinks, spirits, and hospitality service | |
| Drainage SystemIntegrated drain pumpSuitable for installations without direct gravity drainageIncreased installation flexibilityEfficient wastewater removal | |
| Electrical Requirements220–240VSingle Phase50HzStandard 10A commercial power connectionOperating ConditionsAmbient Temperature: 5°C–40°CSuitable for commercial hospitality environments | |
| ConstructionStainless steel evaporatorCommercial-grade cabinet constructionHygienic enclosed ice-making chamberWashable condenser air filterFront-vented installation design |
