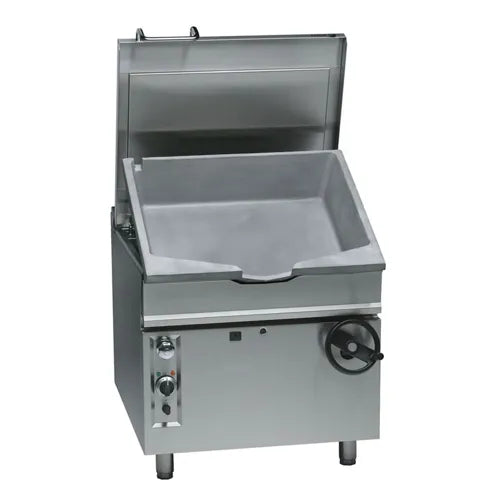

Gas tilting Bratt Pan, available in NG or LPG, with a 90L capacity.
Laser-cut joints, automatic welding, and polished finish with concealed screws for a sleek appearance.
Motorized or crank-operated elevation systems capable of raising the pan vertically for complete emptying.
Versions available with cast iron and stainless steel pans.
Pan designed with rounded corners and no edges, featuring a wide opening for easy unloading, facilitating cooking and cleaning operations.
Perimeter flange prevents condensed water spillage.
Thick bottom (8mm for iron pans and 10 mm for stainless steel pans) ensures even heat distribution.
Pans filled with water via an electric valve operated with a switch on the front of the machine, with the filling pipe located at the back.
Double-walled lid with a drainer at the back redirects condensation water into the well.
Lid balance system using springs. Compensation system to prevent heavy falls, adjustable with the same system for all modules.
Micro breaking switch halts heating when the pan is raised.
High-temperature enameled cast iron flue protector.
Front access door handle.
Temperature of the bottom of the pan is controlled by a thermostat, ranging from 50 to 310 °C.
The heating by branched burners located in the base of the pan, together with the high thickness of the bottom of the pan, ensures maximum uniformity of temperature distribution, guaranteeing even cooking.
Additional Information:

Gas Type: Natural Gas or LPG
Capacity: 90L
Warranty:

2 Years Parts and Labour + 2 Years Parts only Warranty with Product Registration.
Watch the video
