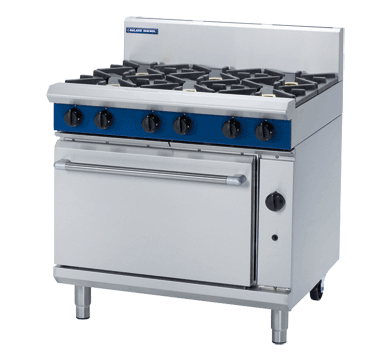

Blue Seal G506D 900mm Gas Range Static Oven
900 mm gas range static oven: 6 open burners over a GN 2/1 gas static oven, 80–300 °C. 198 MJ/h, 55 kW. 900 × 812 × 1085 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
Made by Moffat for the Blue Seal Evolution Series, the G506D is a 900 mm range with 6 open burners on top and a GN 2/1 gas static oven underneath, set by an 80–300 °C thermostat. It uses natural or LP gas, stands 1085 mm high including the splashback, and is 812 mm deep to match the rest of the suite.
Key features and benefits
A gas static oven with a cast-iron sole plate gives the steady bottom heat that suits roasting, braising and baking. Six 28 MJ/h cast-iron burners give a busy line serious pan capacity, each turning down from a hard boil to a simmer. Two chrome racks are supplied for the GN 2/1 oven, and the legs adjust at the front with rollers at the rear for cleaning. The hob is welded with a 304 stainless-steel bull nose, and the oven liner is fully welded and vitreous enamelled for a long working life.
Standard features
- Open burners. 6 cast-iron 28 MJ/h open burners with forged brass caps and dual flame rings with a simmer rate.
- Flame failure. Flame failure standard on the open burners; pilot burners optional.
- Potstands. Vitreous enamelled cast-iron potstands and spill covers; optional cast-iron simmer plates.
- Cooktop controls. Variable high-to-low controls with large heat-resistant reinforced knobs.
- Oven. GN 2/1 gas static oven, fully welded vitreous enamelled liner, four rack positions; supplied with two chrome wire racks.
- Oven burner. 30 MJ/h tubular burner under a cast-iron even-heat sole plate; pilot and flame failure with piezo ignition.
- Oven control. 80–300 °C thermostatic control.
- Drop-down door. 0.9 mm 304 stainless-steel outer, 1.0 mm vitreous enamelled inner, high-density fibreglass insulation.
- Easy-clean oven. Removable racking, rack supports and sole plate; vitreous enamel oven and door inner.
- Heavy-duty build. Galvanised steel chassis and a welded hob with a 1.5 mm 304 stainless-steel bull nose.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs: adjustable at the front, two rollers at the rear.
- Front access. Access to all parts from the front of the unit.
- Fully modular. Lines up with the Blue Seal Evolution Series at 812 mm deep.
Best suited to
- Pan-heavy restaurants. Six burners for stocks, sauces and sauté work.
- Roasts and bakes. A static oven with steady bottom heat.
- Full-line suites. Lines up with other Evolution units at 812 mm deep.
- Gas kitchens. Gas top and gas oven on one connection.
A GN 2/1 oven takes full-size 650 × 530 mm gastronorm pans, or two GN 1/1 pans side by side, so prepared trays go straight from the cool room to the oven. Other configurations in this range: G506C (4 burners and a 300 mm griddle), G506B (2 burners and a 600 mm griddle), G506A (a 900 mm griddle). If you would prefer a convection oven with the same top, see the G56D. For an electric oven under a gas top, look at the GE models in the Blue Seal Evolution range. Before ordering, check the total gas and power load of the whole line with your gas fitter and electrician. All Evolution units are 812 mm deep so they line up in one suite. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel. Burner heads and enamelled spill covers lift off, and stainless spill trays sit under the burner and griddle sections. In the oven, the racks, rack supports and sole plate lift out, and the vitreous enamel liner and door inner wipe clean. The bottom sill removes for access to the oven burner and pilot. All parts are reached from the front.
Installation, power and service
Allow a 900 mm wide, 812 mm deep space; the range stands 915 mm to the work surface and 1085 mm including the splashback. Gas is an R ¾ inch BSP male connection rated at 198 MJ/h, 55 kW, with an optional underside connection if you specify it when ordering. A regulator for natural or LP gas and conversion kits are supplied, so tell us your gas type when you order. A licensed gas fitter must install and commission it. Net weight is 209 kg, so plan the delivery route and lifting. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What temperature range does the oven have?
80–300 °C, on a thermostatic control.
What size is the G506D oven?
The oven is 665 × 590 × 385 mm inside (W × D × H), takes GN 2/1 pans on four rack positions, and comes with two chrome wire racks.
What gas connection does the G506D need?
R ¾ inch BSP male, rated at 198 MJ/h, 55 kW. It suits natural or LP gas; specify your gas type when ordering. A licensed gas fitter must install it.
Do the burners have flame failure?
Yes. Flame failure is standard on the open burners, and pilot burners are optional.
How heavy is the G506D?
Net weight is 209 kg; it measures 900 × 812 × 1085 mm including the splashback.
