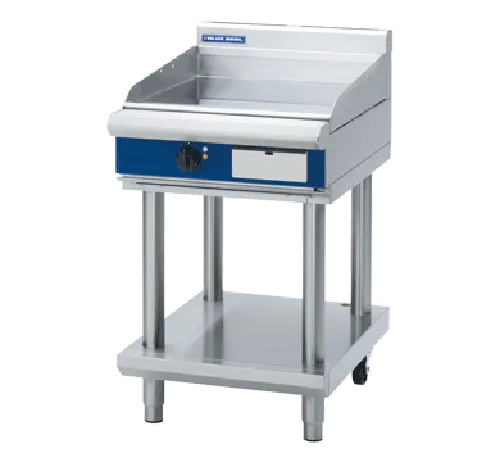

Blue Seal EP514-LS 600mm Electric Griddle Leg Stand
600 mm electric griddle, leg stand. 7.2 kW, 50–300 °C, 20 mm plate, 592 × 530 mm cooking surface. 600 × 812 × 1085 mm incl. splashback.
Hurry up, only 1 item left in stock.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal EP514-LS is a 600 mm electric griddle on a leg stand, from the Evolution Series made by Moffat. Three 2.4 kW elements, 7.2 kW in total, heat a 20 mm machined plate with a 592 × 530 mm cooking surface at 50–300 °C. It runs on single-phase 230–240 V power at 30 A, and the framed stand has a stainless-steel shelf. It is 1085 mm high including the splashback.
Key features and benefits
The EP514-LS is a free-standing electric griddle for kitchens without gas or three-phase power. Its 20 mm plate holds heat evenly, so eggs, pancakes and burgers cook consistently from edge to edge. The thermostat runs from 50 to 300 °C, with power and heating lights and an over-temperature cut-out. The framed stand leaves an open shelf for trays and pans, and its rear rollers and front adjustable feet make levelling and cleaning behind the line easier. Ribbed and chrome plates are options.
Standard features
- Electric griddle. 600 mm thermostatic electric griddle with a 592 × 530 mm, 3138 cm² cooking surface.
- Heating elements. 3 × 2.4 kW stainless-steel sheathed elements, 7.2 kW in total.
- Thermostatic control. Single temperature zone; one 50–300 °C thermostat.
- Indicator lights. Power and heating lights show the griddle's status at a glance.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Optional ribbed plate sections or mirror-finish hard chrome plates.
- Over-temperature cut-out. Safety cut-outs guard against overheating.
- Grease drawer. A 2.5 mm grease channel and a stainless-steel grease drawer.
- Splash guards. 2.5 mm stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm stainless-steel bull nose, 1.2 mm side panels and splashback, and an enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Leg stand. Fully modular framed stand with a 0.9 mm 304 stainless-steel shelf, for a matched suite finish.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs, with two adjustable feet at the front and two rollers at the rear.
- Quick assembly. Quick-assembly design with a framed top for connection to the appliance.
Best suited to
- Cafes and bistros. A free-standing griddle on single-phase power.
- Food courts and kiosks. All-electric cooking where gas is not permitted.
- Breakfast stations. Eggs, bacon and pancakes on a steady plate.
- Evolution suites. Lines up with other Blue Seal units at 812 mm deep.
The bench model sits on an existing bench, the leg stand gives you an open shelf below, and the cabinet base adds enclosed storage with an optional GN 1/1 racking kit: see the EP514-B, EP514-LS and EP514-CB. If you need two heat zones, the 900 mm EP516-B has separate left and right thermostats. Prefer gas? The GP514-B is the same width with a 53 MJ/h burner. The EP514 runs on single-phase power, which makes it a good fit for sites without three-phase. All Evolution units are 812 mm deep so they line up in one suite. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The stainless-steel exterior wipes down easily, and the plate is finished front and rear with an overlap so there are no cleaning traps. Scrape fat into the 2.5 mm grease channel and empty the stainless-steel drawer after each service. Controls are serviced through the front of the unit.
Installation, power and service
Allow a 600 mm wide, 812 mm deep space; the unit stands 1085 mm high including the splashback. The griddle is hard-wired by a licensed electrician to a single-phase 230–240 V supply rated at 30 A, with a total load of 7.2 kW. The front feet adjust and the rear rollers let you pull the unit out for cleaning behind it. No gas or water is needed. Net weight is 118 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What power supply does the EP514-LS need?
Single-phase 230–240 V at 30 A, hard-wired by a licensed electrician; total load 7.2 kW.
How hot does the EP514-LS get?
From 50 to 300 °C on one thermostat.
How big is the cooking surface?
592 × 530 mm, or 3138 cm².
Can I get a ribbed or chrome plate?
Yes. Ribbed plate sections and mirror-finish hard chrome plates are options; the standard plate is 20 mm machined steel.
Does it need gas or water?
No. It is all-electric and needs only a hard-wired electrical connection installed by a licensed electrician.
What are the dimensions?
600 × 812 × 1085 mm including the splashback; net weight 118 kg.
