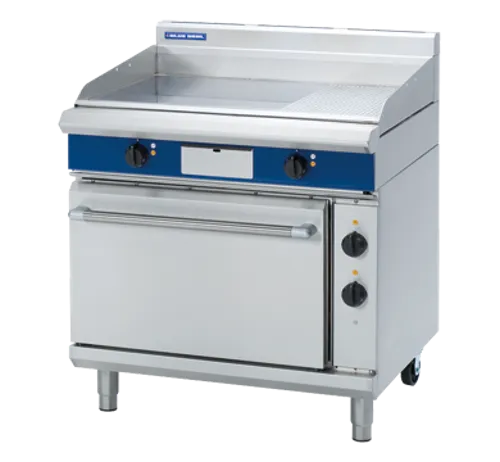

Blue Seal EP506 900mm Electric Griddle Static Oven Range
900 mm electric griddle static oven range: an 892 mm, 20 mm-thick thermostatic electric griddle over a GN 2/1 electric static oven, 50–320 °C. 18.5 kW, three phase. 900 × 812 × 1085 mm incl. splashback.
Hurry up, only 1 item left in stock.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal EP506 is a 900 mm electric griddle static oven from the Evolution Series, made by Moffat for commercial kitchens. It combines an 892 mm, 20 mm-thick thermostatic electric griddle with a GN 2/1 electric static oven below, rated 50–320 °C. It runs on three-phase power and measures 900 × 812 × 1085 mm including the splashback.
Key features and benefits
A 20 mm machined griddle plate is heated by six 2 kW sheathed elements in two zones, each with its own 50–300 °C thermostat and an over-temperature cut-out. Below, an electric static oven with separate top and bottom elements and a Lo–Hi top heat control gives fine control for baking and gratins. The oven takes GN 2/1 pans on four rack positions, and two chrome racks are supplied. Legs adjust at the front and roll at the rear for cleaning. The hob is welded with a 304 stainless-steel bull nose, and the oven liner is fully welded and vitreous enamelled for a long working life.
Standard features
- Griddle plate. 20 mm machined steel plate, cooking surface 892 × 530 mm, 4728 cm².
- Griddle elements. 6 × 2 kW stainless-steel sheathed elements clad to the plate base.
- Thermostatic zones. Separate left and right heat zones with two 50–300 °C thermostats, power and heating lights and over-temperature cut-outs.
- Grease management. 2.5 mm grease channel, stainless-steel grease drawer and 2.5 mm 304 stainless-steel splash guards.
- Plate options. Optional ribbed plate sections or mirror-finish hard chrome plates.
- Oven. GN 2/1 electric static oven, fully welded vitreous enamelled liner, four rack positions; supplied with two chrome wire racks.
- Oven elements. 4.5 kW bottom and 2.0 kW top heating elements under a cast-iron even-heat sole plate.
- Oven control. 50–320 °C thermostatic control with power and heating lights; separate Lo–Hi top heat control.
- Drop-down door. 0.9 mm 304 stainless-steel outer, 1.0 mm vitreous enamelled inner, high-density fibreglass insulation.
- Easy-clean oven. Removable racking, rack supports and sole plate; vitreous enamel oven and door inner.
- Heavy-duty build. Galvanised steel chassis and a welded hob with a 1.5 mm 304 stainless-steel bull nose.
- Legs and rollers. 63 mm heavy-duty 304 stainless-steel legs: adjustable at the front, two rollers at the rear.
- Front access. Access to all parts from the front of the unit.
- Fully modular. Lines up with the Blue Seal Evolution Series at 812 mm deep.
Best suited to
- All-electric grill menus. A thermostatic griddle above an oven.
- Roasts and bakes. A static oven with steady bottom heat.
- Full-line suites. Lines up with other Evolution units at 812 mm deep.
- Sites without gas. Runs entirely on a three-phase electrical supply.
A GN 2/1 oven takes full-size 650 × 530 mm gastronorm pans, or two GN 1/1 pans side by side, so prepared trays go straight from the cool room to the oven. A thermostatic plate holds the temperature you set, so cooks can leave product on it without constant adjustment. If you would prefer a convection oven with the same top, see the EP56. An all-electric range suits sites without gas, provided the switchboard has capacity for a three-phase supply. Before ordering, have your electrician confirm the three-phase supply and the circuit size. All Evolution units are 812 mm deep so they line up in one suite. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel. The plate is finished with an overlap at the front and rear to remove cleaning traps; scrape fat into the grease channel and empty the drawer after service. In the oven, the racks, rack supports and sole plate lift out, and the vitreous enamel liner and door inner wipe clean. All parts are reached from the front.
Installation, power and service
Allow a 900 mm wide, 812 mm deep space; the range stands 915 mm to the work surface and 1085 mm including the splashback. It is hard-wired by a licensed electrician to a 400–415 V three-phase supply; total load is 18.5 kW. No gas or water is needed. Net weight is 153 kg, so plan the delivery route and lifting. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
What size is the EP506 oven?
The oven is 665 × 590 × 400 mm inside (W × D × H), takes GN 2/1 pans on four rack positions, and comes with two chrome wire racks.
What temperature range does the oven have?
50–320 °C, on a thermostatic control with power and heating lights.
What power supply does the EP506 need?
A 400–415 V three-phase supply, hard-wired by a licensed electrician: 18.5 kW; L1 26 A, L2 26 A, L3 26 A.
Can I get a ribbed or chrome plate?
Yes. Ribbed plate sections and mirror-finish hard chrome plates are options; the standard plate is 20 mm machined steel.
How heavy is the EP506?
Net weight is 153 kg; it measures 900 × 812 × 1085 mm including the splashback.
