Blue Seal G516D-B 900mm Gas Cooktop Bench Model
900 mm gas cooktop, 6 open burners, bench model. 168 MJ/h (46.6 kW), natural or LP gas. 900 × 812 × 485 mm incl. splashback.
Hurry up, only 1 item left in stock.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

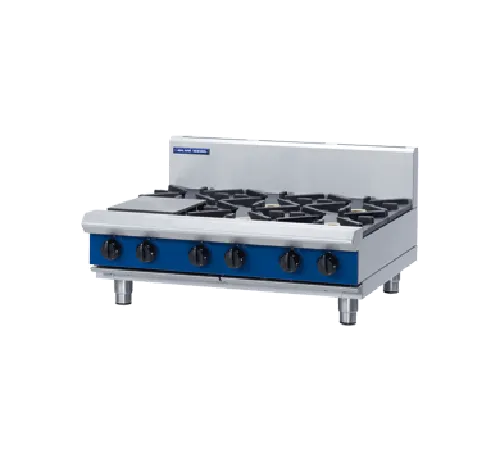

The Blue Seal G516D-B is a 900 mm gas cooktop for mounting on an existing bench, from the Evolution Series made by Moffat for commercial kitchens. It carries six 28 MJ/h open burners with dual flame rings and a simmer rate, 168 MJ/h in total. It runs on natural or LP gas, measures 900 × 812 mm, and stands 485 mm high including the splashback.
Key features and benefits
Six heavy cast-iron burners in 900 mm give a busy line serious pan capacity. Each dual flame ring runs from a hard boil for stocks down to a simmer for sauces. Controls are variable from high to low, with large reinforced knobs that are easy to read. Flame failure is standard on the open burners. It sits on four 304 stainless-steel bench legs that adjust from 80 to 105 mm, so it levels on most benches. The welded 304 stainless-steel hob and bull nose stand up to heavy daily use.
Standard features
- Open burners. 6 cast-iron 28 MJ/h open burners with forged brass caps and dual flame rings with a simmer rate.
- Flame failure. Flame failure protection on the open burners as standard; pilot burners are optional.
- Potstands. Vitreous enamelled cast-iron potstands and burner spill covers.
- Simmer plates. Optional cast-iron simmer plates replace the potstands.
- Controls. Variable high-to-low controls with large heat-resistant reinforced knobs and easy-view settings.
- Spill trays. Stainless-steel spill trays under the open burner and griddle sections.
- Heavy-duty build. Welded hob with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm side panels and splashback, vitreous enamelled control panel and aluminised internal construction.
- Easy service. Access to all parts from the front of the unit.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Bench legs. Four 63 mm heavy-duty 304 stainless-steel bench legs with adjustable feet, adjustable in height from 80 to 105 mm.
Best suited to
- Pan-heavy restaurants. Six burners for sautéing, boiling and reductions.
- Stock and sauce production. Simmer rates hold sauces gently.
- Bench-top installs. Sits on an existing bench on adjustable legs.
- Matched suites. Lines up with other Blue Seal Evolution units at 812 mm deep.
In the 900 mm range, compare the G516C-B (4 burners + 300 mm griddle), G516B-B (2 burners + 600 mm griddle) and G516A-B (900 mm griddle). This configuration also comes as a leg stand (G516D-LS), cabinet base (G516D-CB) and refrigerated base (G516D-RB). Pair it with the 300 mm G512C-B griddle or G512D-B two-burner modules to fill a gap in a suite. Before ordering, add up the gas ratings of every appliance on the line so your gas fitter can confirm the meter and supply pipe are large enough. All Evolution units are 812 mm deep so they line up in one suite. Browse the Blue Seal Evolution range or call 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel. Burner heads and the vitreous enamelled spill covers lift off for cleaning, and stainless spill trays sit under the burners to catch spills. Soak potstands and spill covers regularly to keep the burners clean. All parts are reached from the front of the unit.
Installation, power and service
Allow a 900 mm wide, 812 mm deep space; the unit stands 485 mm high including the splashback. Gas is an R ¾ inch BSP male connection rated at 168 MJ/h (46.6 kW). A regulator for natural or LP gas and conversion kits are supplied, so tell us your gas type when you order. A licensed gas fitter must install and commission it. The bench legs adjust from 80 to 105 mm to level it on your bench. Net weight is 129 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How much gas does the G516D use?
Six 28 MJ/h open burners give 168 MJ/h (46.6 kW) in total.
What gas connection does the G516D-B need?
R ¾ inch BSP male, rated at 168 MJ/h (46.6 kW). It suits natural or LP gas; specify your gas type when ordering. A licensed gas fitter must install it.
What are the dimensions of the G516D-B?
900 × 812 × 485 mm including the splashback. Net weight is 129 kg.
Do the burners have flame failure?
Yes. Flame failure is standard on the open burners, and pilot burners are optional.
Can I fit simmer plates?
Yes. Cast-iron simmer plates are an optional extra and replace the potstands.
