Blue Seal GP513-B 450mm Gas Griddle Bench Model
450 mm gas griddle, bench model. 40 MJ/h, 90–300 °C, 20 mm plate, 442 × 530 mm cooking surface. 450 × 812 × 485 mm incl. splashback.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Blue Seal GP513-B is a 450 mm gas griddle bench model from the Evolution Series, made by Moffat for commercial kitchens. A single 40 MJ/h (11.1 kW) burner heats a 20 mm machined plate with a 442 × 530 mm cooking surface, controlled by a 90–300 °C thermostat. It stands on adjustable bench legs and is 485 mm high including the splashback.
Key features and benefits
The GP513-B is the narrowest griddle in the Evolution Series, so it fits where a 600 mm unit will not. The 20 mm plate stores heat and recovers quickly as product goes down, and the thermostat holds a steady temperature for eggs, pancakes, onions or smash burgers. A flame failure pilot with piezo ignition and an over-temperature cut-out keep it safe. The grease drawer slides out for emptying, and the overlapped plate edges make the end-of-day clean faster. Full-width ribbed or mirror chrome plates are available if your menu needs them.
Standard features
- Gas griddle. 450 mm thermostatic gas griddle with a 442 × 530 mm, 2343 cm² cooking surface.
- Burner system. One 40 MJ/h 3-bar chromed steel burner with pilot, flame failure and piezo ignition, 40 MJ/h (11.1 kW).
- Thermostatic control. One 90–300 °C thermostat.
- 20 mm griddle plate. Machined 20 mm top plate, top weld sealed.
- Plate options. Full-width ribbed plate or full-width mirror chromed plate available as options.
- Over-temperature cut-out. Safety cut-out guards against overheating.
- Grease drawer. A stainless-steel grease drawer.
- Splash guards. 2.5 mm 304 stainless-steel splash guards on the sides and rear.
- Heavy-duty build. Welded hob surround with a 1.5 mm 304 stainless-steel bull nose, 1.2 mm 304 side panels and splashback, and a vitreous enamelled control panel.
- Control knobs. Large heat-resistant reinforced knobs with easy-view settings.
- Easy-clean plate. Overlapping finish at the front and rear of the plate removes cleaning traps.
- Fully modular. Matches the Blue Seal Evolution Series suite.
- Bench legs. Four 63 mm heavy-duty 304 stainless-steel bench legs with adjustable feet, adjustable in height from 80 to 105 mm.
Best suited to
- Small cafes. A compact plate for eggs, bacon and toasties in a tight kitchen.
- Food trucks and kiosks. 450 mm wide on a bench, with a single easy thermostat.
- Restaurant pass stations. A dedicated griddle for garnishes, onions or flatbreads beside a main line.
- Suite fill-ins. Fills a 450 mm gap in a Blue Seal Evolution line-up.

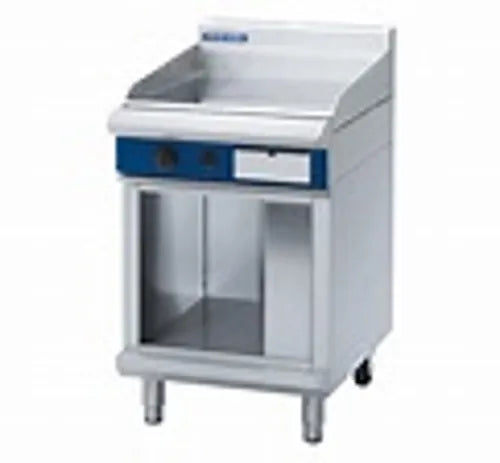

The bench model suits operators who already have a bench or want to sit it on a refrigerated counter. The GP513-CB is the same griddle on a cabinet base with GN 1/1 racking. If you have more room, the 600 mm GP514-B adds cooking area, and the 900 mm GP516-B gives two independent heat zones. Every Evolution griddle is 812 mm deep, so they line up with Blue Seal cooktops, fryers and chargrills. A 450 mm width also pairs well with a single Blue Seal fryer. Browse the Blue Seal Evolution range or call us on 1300 089 974.
Cleaning and maintenance
The exterior is easy-clean stainless steel, and the plate is finished front and rear with an overlap so grease has nowhere to hide. Scrape fat into the channel and empty the stainless-steel grease drawer after each service. Controls are serviced and gas conversions are done through the front of the unit; burner service needs the plate removed.
Installation, power and service
Allow a 450 mm wide, 812 mm deep space; the unit stands 485 mm high including the splashback. Gas is an R ¾ inch BSP male connection rated at 40 MJ/h (11.1 kW), and it comes with a regulator for natural or LP gas plus conversion kits, so tell us your gas type when you order. A licensed gas fitter must install and commission it. The bench legs adjust from 80 to 105 mm to level it on your bench. Net weight is 77 kg. Moffat supports Blue Seal through its national service network; ask us to confirm current warranty cover on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How big is the GP513-B cooking surface?
442 × 530 mm, or 2343 cm², on a 20 mm machined plate.
What temperature range does the GP513-B have?
One thermostat sets the plate from 90 to 300 °C.
What gas supply does the GP513-B need?
40 MJ/h (11.1 kW) through an R ¾ inch BSP male connection, installed by a licensed gas fitter.
What gas types can it run on?
Natural gas or LP gas. It comes with a natural and LP regulator and gas type conversion kits; tell us which gas you have when you order.
Can I order a ribbed or chrome plate?
Yes. A full-width ribbed plate and a full-width mirror chromed plate are options.
How heavy is it?
The bench model weighs 77 kg and measures 450 × 812 × 485 mm including the splashback.
