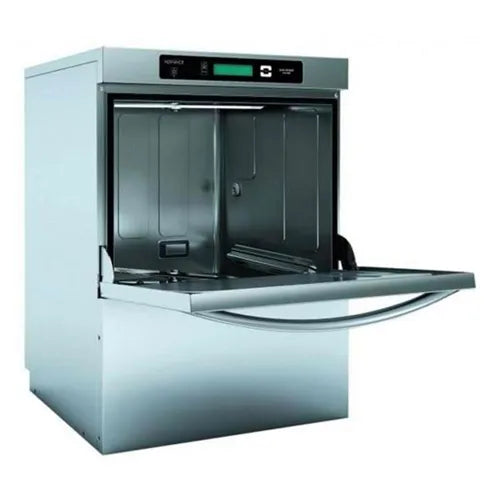

Fagor EVO-CONCEPT undercounter dishwasher with drain pump CO-502BDD.
Fagor EVO-CONCEPT undercounter dishwasher with drain pump CO-502BDD.
Find it in-store and in-stock at a competitor for a cheaper price and we will match the price*
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
Efficient Design:
Front-loading dishwasher from the EVO Generation in the Concept range.
Hourly production capacity: 40 baskets/hour or 720 dishes/hour.
Clearance for maximum ware height: 380 mm.
Suitable for GN-1/1 trays.
Control and Operation:
Electronic control panel for easy operation.
Wash cycles: 90-180.
Electromechanical control panel for user-friendly operation.
Construction:
Made of durable stainless steel.
Full double-skin body to isolate machine noise from the environment.
Double-skin door with special pressed isolation material for noise reduction and heat retention.
Rock counterbalanced door with a double spring and stainless steel hinge system.
Allows placement under surfaces of 850 mm height.
Wash and Rinse Systems:
Double rotating wash and rinse systems, both above and below, made of stainless steel.
Tray filters on the tank, made of AISI-304 stainless steel.
Supplied with 1 dish rack and 1 glass rack.
Pump and Heating:
Wash pump: 600 W.
Drain pump: 30 W with drainage cycle.
Tank with a 2.8 kW heating element.
Tank capacity: 20 liters.
Boiler with multipower heating elements: 1.8 kW, 2.8 kW, 3.7 kW, 5.6 kW (15Amp).
Boiler capacity: 7 liters.
Water Consumption and Temperature Control:
Constant water consumption of 2.4 liters per cycle for rinse with a mains pressure of 2 bar.
Thermostatic temperature control: washing at 60°C and rinsing at 90°C.
Thermostop and security thermostats.
Dispensers and Safety Features:
Built-in automatic rinse dispenser.
Built-in detergent doser.
Built-in non-return valve.
Safety magnetic switch for door opening.
Adjustable and WaterMark Approved:
Adjustable legs for leveling.
WaterMark approved.
Dimensions and Accessories:
Total power: multipower 2.4 kW, 3.4 kW, 4.3 kW, 6.2 kW.
Dimensions: 600 x 600 x 830 mm.
Baskets equipment: 1 x CT-10, 1 x CP-1618, and 2 cutlery containers.
Warranty:
Comes with a 2 Years Parts and Labour Warranty.
The Fagor EVO-CONCEPT Undercounter Dishwasher is equipped with advanced features for reliable and high-performance dishwashing in commercial kitchens.
