Washtech PW3C Wide Body Passthrough Warewasher with Heat Recovery Unit, 500mm Rack
Wide body passthrough warewasher with heat recovery: W 1050 × D 640 × H 650 mm chamber, cold water, suits no canopy in most sites.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

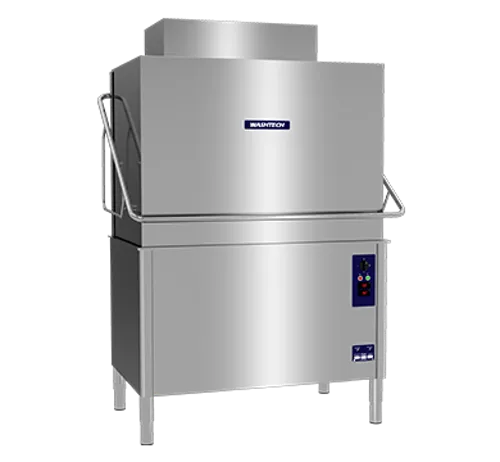

The Washtech PW3C is a wide body passthrough warewasher with an integrated heat recovery unit, made in New Zealand by Washtech and distributed by Moffat. The heat recovery unit reduces steam emissions and energy use, optimises it for cold inlet water, and suits installation without an extraction canopy in many situations. The W 1050 × D 640 × H 650 mm chamber takes bins, crates and bowls.
Key features and benefits
The PW3C combines the PW3's passthrough layout with heat recovery, for operations washing oversized items all day. Steam from each cycle preheats the cold water feed, so the wash-up area stays cooler and power costs fall, and a canopy is often not needed. Longer 3, 5 and 7 minute cycles, a high powered dual-pump wash system and robust stainless-steel arms clean heavily soiled items, while a break tank and rinse pump cope with low inlet pressure. A counter-sprung hood and inline bench work make loading easy.
Standard features
- Integrated heat recovery unit. Reduces steam emissions and energy consumption.
- Suits no extraction canopy. In many situations.
- Wide body chamber. Usable area W 1050 × D 640 × H 650 mm.
- Counter-sprung hood. Easy access to the chamber.
- Inline bench work. Easy passthrough loading.
- High powered dual-pump wash system. For heavily soiled items.
- Break tank and rinse pump fitted. Suits low inlet water temperature and/or pressure.
- Washtech hybrid controls. IP67 stainless switches with a customisable electronic timer.
- Stainless-steel wash and rinse arms. Precision stainless-steel jets.
- Double stainless-steel filtration. Dual scrap trays and a separate wash inlet filter.
- Watermark-approved backflow prevention. Atmospheric vacuum breaker.
- Easy installation. Water supply hose and detergent and rinse aid pumps with injector lines supplied.
- 3, 5 and 7 minute cycles. On 4 litres of water a cycle.
Best suited to
- Bakeries. Bins and trays with less steam.
- Supermarkets. Crates and tubs without new extraction.
- Hospitals and institutions. Large utensils with lower running costs.
- Central production kitchens. A passthrough pot wash line.
The PW3C is the heat recovery version of the PW3. For a front loading layout with heat recovery, see the PW2C, and for a narrower heat recovery passthrough the AL8C. Before ordering, check the water supply temperature and pressure, the drain position and the power supply against the specification so the machine performs as rated from day one. Our team can help you size the machine to your covers and peak service, so you are not paying for capacity you will never use. If you are replacing an older warewasher, measure the existing water, drain and power positions so the installer knows what will need to move. Browse the Washtech range or call 1300 089 974.
Cleaning and maintenance
At the end of each shift, drain the tank, then lift out the dual scrap trays and the wash inlet filter and rinse them. Check the stainless-steel wash and rinse arms for blocked jets, wipe the hood seals, keep the heat recovery unit clear, and leave the hood up overnight so the chamber can air. Keep the detergent and rinse aid containers topped up.
Installation, power and service
The PW3C is 1305 mm wide, 920 mm deep and 2015 mm high, suits an inline bench gap of 1195 mm and weighs 255 kg. It needs potable cold water under 25 °C at 100–350 kPa and 10 L a minute through a ¾ in male connection, using 4 L a cycle; a 65 °C fill-only hot line speeds initial heating and can be replaced by a second cold line. Waste is 1.5 in BSP male to a 50 mm minimum line. Power is three phase 400 V at 30 A (19.5 kW) or 20 A (12 kW). Washtech is backed by Moffat's warranty and national service network; call 1300 089 974 to confirm the current terms.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
Does the PW3C need an extraction canopy?
It is suitable for installation without an extraction canopy in most instances. Full certification is available on request.
What water supply does it need?
Cold water under 25 °C at 100–350 kPa and 10 L a minute. A 65 °C hot water line for fill only is recommended for faster initial heating, or it can be another cold line.
How long are the cycles?
3, 5 and 7 minutes, using 4 litres of water a cycle.
What bench gap does it need?
An inline bench gap of 1195 mm.
What power does the PW3C need?
Three phase 400 V at 30 A (19.5 kW) or 20 A (12 kW).
What drain does it need?
A 1.5 in BSP male connection to a drain line of at least 2.0 in (50 mm).
Does the PW3C need treated water?
Water quality affects results and machine life. The sheet sets limits of pH 7–8 and TDS up to 135, with maximums for chloride, sulphate, iron and chlorine; we can advise on a filter or softener if your supply is outside them.
