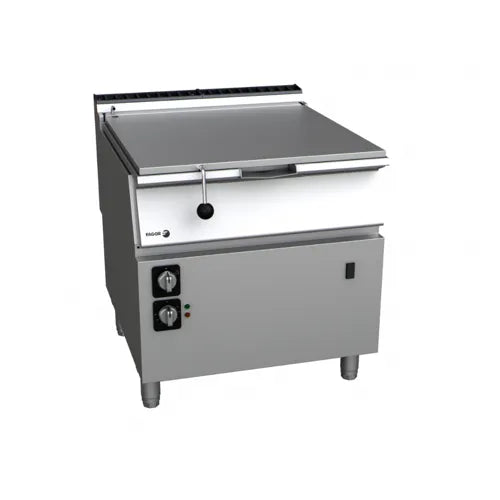

Gas tilting Bratt Pan, NG 50Hz, motorized with a stainless steel tank of 90 L, 900 range.
Laser-cut joints, automatic welding, and polished finish with hidden screws.
Pan designed with rounded corners and no edges, featuring a wide opening for easy unloading, simplifying cooking and cleaning operations.
Flange around the perimeter prevents condensed water spillage.
Thick bottom (8 mm for iron pans and 10 mm for stainless steel pans) ensures even heat distribution.
Pans filled with water via an electric valve operated with a switch on the front; filling pipe located at the back.
Double-walled lid with a drainer at the back redirects condensation water into the well.
Lid balance system using springs. Compensation system to prevent heavy falls, adjustable with the same system for all modules.
Micro breaking switch halts heating when the pan is raised.
High-temperature enameled cast iron flue protector.
Front access door handle.
Temperature of the bottom of the pan controlled by a thermostat, ranging from 50 to 310 °C.
Stainless steel pan.
Electrically heated models use shielded stainless steel heating elements located under the bottom of the pan.
Heating by branched burners or electrical heating elements located in the base of the pan, together with the high thickness of the bottom of the pan, ensures maximum uniformity of temperature distribution, guaranteeing even cooking.
Motorized or crank-operated elevation systems capable of raising the pan vertically to completely emptying.
Gas Type: Natural Gas
Gas Power: 18.00 kW
Gas Consumption: 1,880 m3/h
Regulated: NG G20/G25/G25.1 20/25/25 mbar
Gas Diameter 1: R34
Water Inlet Diameter: 3/4"
2 Year Warranty
