Turbofan EC40M5 Five Tray Manual Electric Combi Oven
Five-tray manual electric combi. 5 × 1/1 GN or 5 × 600 × 400 mm, 7 kW heating, 7.25 kW electrical (3-phase 11 A or single-phase 32 A). 777 × 835 × 777 mm.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary

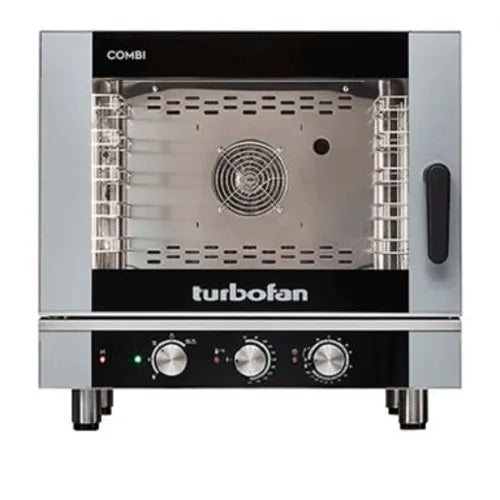

The Turbofan EC40M5 is a five-tray manual electric combi oven with electric direct steam, made by Moffat for Australian commercial kitchens. It holds five 1/1 GN pans, or five 600 × 400 mm trays, at 70 mm tray spacing. External dimensions are 777 × 835 × 777 mm. Heating power is 7 kW, with a 7.25 kW electrical connection, available as 400–415 V three-phase at 11 A, or 230–240 V single-phase at 32 A. Packed weight is 85 kg.
Key features and benefits
The EC40M5 is the compact manual combi in the EC40 family: electro-mechanical controls set time, temperature and mode, without a touch screen. Three manual modes cover convection and combi cooking at 50–260 °C and steam at 50–130 °C, with a timer up to 120 minutes. An auto-reverse fan helps keep the five-tray load even, and a door-open rapid cool-down and a manual chamber vent give you extra control between batches. A hand shower is included for manual cleaning, together with a triple-action water filter and filter head.
Standard features
- Electric direct steam. Electric direct steam version for convection, steam and combi cooking.
- Capacity. Five 1/1 GN pans, or five 600 × 400 mm trays, at 70 mm tray spacing.
- Compact width. 777 mm wide, 835 mm deep and 777 mm high.
- Heating power. 7 kW heating, on a 7.25 kW electrical connection.
- Electro-mechanical controls. Time, temperature and operating mode are set manually.
- Three cooking modes. Convection 50–260 °C, steam 50–130 °C, and combi 50–260 °C.
- 120-minute timer. Manual timer range up to 120 minutes.
- Auto-reverse fan. Automatic reversal of fan direction for even cooking.
- Rapid cool-down. Door-open rapid cool-down function.
- Manual chamber venting. Vent the chamber by hand between loads.
- Manual cleaning. Manual cleaning system with an externally connected hand shower, including fittings.
- Cooking chamber. Smooth chamber walls with rounded edges, and LED chamber lighting.
- Double-glazed door. Thermo-reflective tempered glass, with adjustable hinges for the door seal.
- Water filter. Triple-action water-filter cartridge and filter head included.
Best suited to
The EC40M5 suits cafes, smaller restaurants, clubs and aged-care kitchens that want steam, convection and combi cooking in a five-tray cabinet, with simple manual controls rather than a programmable touch screen. Five 1/1 GN pans, or 600 × 400 mm trays, cover a lunch service of vegetables, proteins, gratins or a regenerated batch, and the 777 mm width helps it sit in a tighter line. Choose the three-phase 11 A connection or the single-phase 32 A option to match the supply you have on site. The included hand shower is useful for a quick clean between services. If you want the same five-tray size with a touch screen, look at the EC40T5. The EC40M7 is the next manual size up, and the SK40A stand suits the 5- and 7-tray models. Browse the Turbofan range if you are comparing the larger touch combis as well. Call 1300 089 974 if you want help matching a five-tray combi to your power supply.
Cleaning and maintenance
Cleaning is manual, with an externally connected hand shower and fittings included. The chamber has smooth walls and rounded edges, and the double-glazed door uses thermo-reflective tempered glass with adjustable hinges to keep the seal even. A triple-action water-filter cartridge and filter head are included; replace the cartridge as part of ordinary water-quality care so scale does not build up in the steam system.
Installation, power and service
Allow space for a 777 × 835 × 777 mm combi, plus door swing and access for the hand shower. Two electrical options are listed: 400–415 V, 50 Hz, 3P+N+E, 7.25 kW, 11 A; or 230–240 V, 50 Hz, single-phase, 7.25 kW, 32 A. Heating power is 7 kW. A licensed electrician should confirm which supply is being used and complete the connection. Packed weight is 85 kg, so plan the path in and the bench or stand loading before delivery. A plumber should fit the water and drain connections, and the included water filter should be installed as specified. Moffat operates a national service network; call 1300 264 217 and quote EC40M5. Ask us to confirm the current warranty on 1300 089 974.
Why buy from Hospitality Connect
Hospitality Connect has more than 20 years’ experience supplying and designing commercial kitchen solutions, with a showroom at Unit 7, 20 Hickeys Road, Penrith NSW 2750. You can view equipment in person and get advice from the team, Monday to Friday, 8:30 am to 4:30 pm. We deliver Australia-wide; equipment is kerbside with tailgate delivery as standard. SilverChef Rent-Try-Buy finance is available if you prefer to spread the cost. Call 1300 089 974.
Downloads
Specifications
Specifications
Frequently Asked Questions
How many pans does the EC40M5 hold?
It holds five 1/1 GN pans, or five 600 × 400 mm trays, at 70 mm tray spacing.
Is the EC40M5 a touch-screen combi?
No. It uses electro-mechanical controls to set time, temperature and mode. If you want a five-tray touch-screen combi, look at the EC40T5.
What cooking modes does it have?
Three manual modes: convection 50–260 °C, steam 50–130 °C, and combi 50–260 °C, with a timer up to 120 minutes.
What power does the EC40M5 need?
Heating power is 7 kW, on a 7.25 kW electrical connection. It can be connected as 400–415 V, three-phase, 11 A, or as 230–240 V, single-phase, 32 A. A licensed electrician should confirm the supply.
How is the EC40M5 cleaned?
Cleaning is manual, with an externally connected hand shower included. A triple-action water-filter cartridge and filter head are also included.
Is there a stand for the EC40M5?
Yes. The SK40A stainless-steel stand suits the 5- and 7-tray combi models. The EC40M7 is the next manual size up.
Can Hospitality Connect deliver the EC40M5 in Australia?
Yes. We deliver Australia-wide, with kerbside tailgate delivery as standard. Moffat service is available on 1300 264 217; ask us to confirm the current warranty on 1300 089 974.
