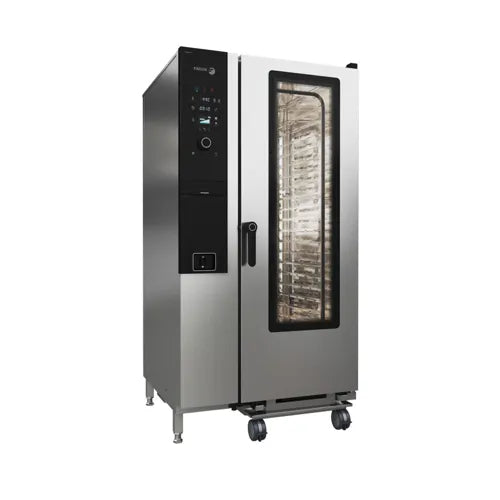

Fagor IKORE Concept 20 Trays Combi Oven CW-201ERSWS
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Shipping & Delivery Information
Shipping & Delivery Information
Once your order has been processed and payment confirmed, we aim to dispatch your items within 1–3 business days. Please note we do not operate on weekends.
Delivery Schedule:
We deliver Monday to Friday during standard business hours only. Delivery times depend on both your location and the warehouse location of the product.
Estimated Delivery Times (after dispatch):
- Brisbane, Sydney, Melbourne (Metro): 2–5 business days
- Gold Coast, Sunshine Coast, Northern Rivers, Adelaide, Wollongong, Newcastle: 2–7 business days
- Perth, Hobart: 5–10 business days
- Other areas: 5–14 business days
Please be aware that while we work closely with our suppliers and couriers, delivery times are estimates and not guaranteed. Delays may occasionally occur due to warehousing backlogs or courier issues.
Warranty & Returns
Warranty & Returns
The warranty for each product is listed in the product description above.
If it’s not listed or you have any questions, please contact our customer support team.
Before placing your order, please take a moment to review the following:
- Warranty Information
- Returns & Exchanges Policy
These terms outline your rights and responsibilities regarding warranty coverage and product returns.
Detailed Summary
Detailed Summary
The Fagor CW-201ERSWS IKORE Concept 20 Trays Combi Oven is designed for commercial kitchens using Fagor equipment. The unit measures 898 x 817 x 1841 mm. Its rated supply is 415V/50Hz, 37.2kW three-phase. Highlights include 8'' screen with rotary nob and push function for configuring and confirming inputs, air and water cool-down (rapid cabinet cooling function), chamber dehumidification for crispy roasts - Delta cooking and steam generation by injecting water into the turbine, atomizing the water, and converting it into steam. Warranty cover is 2 years parts and labour.
Key Features
- 8'' screen with rotary nob and push function for configuring and confirming inputs
- IClima: Humidity management and control by means of direct measurement with a humidity sensor. 10% regulation capacity
- Fagor Recipe Centre: . 100 factory preset and culinary tested recipes. Storage capacity for more than 100 9-stage recipes (come with 100 recipes pre-set)
- Air and water cool-down (rapid cabinet cooling function)
- Cooking modes: low temperature steam 30-98°, steam 99°, super steam 100- 130°, mixed 30-300° and convection 30-300°
- Chamber dehumidification for crispy roasts - Delta cooking
- Steam generation by injecting water into the turbine, atomizing the water, and converting it into steam
- Languages: 5
- Ability to configure screen tone, volume, and contrast
- Tone: 8
- Power, network, language, and system settings
- SAT and Trade fair mode EQUIPMENT FEATURES:
- Stop/start function
- EZ-Sensor. Internal probe with 4 measuring locations
- Positioning aid for temperature sensor
- Manual steam injection
- Automatic humidification system
- Variable humidification with 5 levels
- 6 programmable air circulation speeds (from 1400 rpm to turbine stop)
- Option to switch from °C to °F
- Display of actual values and selected values
- Delayed programming
- Ability to select 1/2 power
- Automatic humidification system
- Automatic dehumidification system
- Automatic adaptation to the characteristics of the installation site (altitude, etc.) including initial self-testing
- Automatic boiling point adjustment
- Removable fan cover
- Integrated turbine brake for increased safety
- HA-Control (indirect combustion, does not pass through the oven chamber)
- Auto-reverse system for reversing fan rotation
- Double-glazed, ventilated cooking chamber door
- Special heat-reflective coating and hinged inner panes for easy cleaning
- LED lighting in the cooking chamber
- HOLD-OPEN DOOR systems (3 locking positions for greater user safety)
- Easily replaceable gasket insert - Interior and outer material: AISI 304 stainless steel (interior mirror polished) CERTIFICATION AND INS
- EC declaration of conformity
- EC declaration of gas conformity
- CB safety
- IPX5 protection against splashes and jets of water
- Height adjustable equipment feet (all except 0623)
- Monitor App & Maintenance App (self-diagnosis of warnings and errors)
- Logging App: . Cycle history . Error history
- IWashing (environmentally efficient)
- Choice of iWashing Solid or iWashing Liquid smart washing systems
- Washing programmes:
- 1 basic cleaning programme (spray) . 3 automatic cleaning programs. 1 rinsing programme. 1 polishing programme
- Indication of cleaning status and remaining time
Specifications
| Model | CW-201ERSWS |
|---|---|
| Power | 415V/50Hz; 37.2kW;3N |
| Width | 898 mm |
| Depth | 817 mm |
| Height | 1841 mm |
| Net Weight | 249 kg |
| Knobs | 1 knob |
| Packed Dimensions (W x D x H) | 1095 x 1015 x 2070 mm |
| Warranty | 2 Years Parts and Labour |
Downloads
Specifications
Specifications
Frequently Asked Questions
What are the dimensions of the CW-201ERSWS?
It measures 898 mm wide x 817 mm deep x 1841 mm high and weighs 249 kg net.
What power supply does the CW-201ERSWS need?
The CW-201ERSWS is rated at 415V/50Hz; 37.2kW;3N.
What warranty comes with the CW-201ERSWS?
Fagor covers the CW-201ERSWS with 2 Years Parts and Labour.
